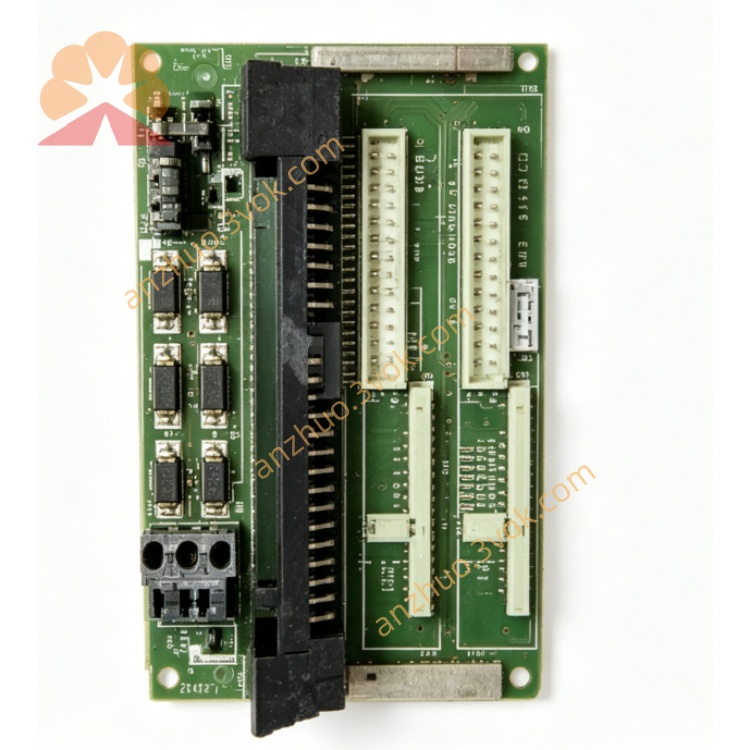

TRICONEX 2058 is a triple modular redundant digital input module designed exclusively for the Tricon Trident compact safety instrument system platform, certified SIL 3 for critical industrial safety applications. It is responsible for collecting 24 VDC discrete contact signals from field devices including valve position feedback switches, local emergency stop buttons, equipment running status contacts, fire and gas detector dry contacts, and process interlock auxiliary contacts.The module contains three fully isolated independent sampling channels to implement patented 2-out-of-3 hardware voting logic. Any abnormal signal collected by a single redundant channel will be filtered out automatically to avoid false interlock actions or misjudgment of field equipment status. It cannot support online hot-swap, so full rack power shutdown is mandatory for module removal or replacement. Compared with high-density I/O cards for large Tricon racks, the 2058 features a compact layout matching small Trident cabinets, and it is widely deployed in small refinery ESD systems, onshore gas station fire protection systems, auxiliary boiler safety monitoring and low-risk chemical reactor safety loops.

TRICONEX stands for the brand of Schneider Tricon TMR safety control hardware series, separated from ordinary non-safety automation modules.2058 is the fixed hardware model code for Trident series digital input cards: the first digit “2” represents the Trident compact small-scale safety system product line; the middle two digits “05” mark general digital input circuit architecture; the last digit “8” stands for 16-channel 24VDC contact input hardware layout with full channel surge suppression.Standard unmarked version is for general indoor control cabinet installation. Suffix variants are provided for differentiated site environments. The suffix N indicates enhanced EMC noise suppression version suitable for compressor rooms and medium interference workshops. The suffix E represents full English firmware for overseas international projects. The suffix HT is high-temperature enhanced variant that extends stable upper operating temperature to 70 degrees Celsius for furnace-side high heat cabinets. This module must be used together with dedicated matched FTA field termination assemblies to complete field contact wiring.

The module draws operating power of 24 VDC from the Trident rack backplane, with typical power consumption lower than 7 watts, and allows backplane voltage fluctuation between 18 VDC and 30 VDC. It carries 16 independent digital input channels designed for dry contact or wet 24VDC field signals. The signal judgment threshold divides the working range clearly: signal voltage below 5 VDC is identified as off state, voltage between 6 VDC and 14 VDC is the transition zone, and voltage above 15 VDC is judged as on state. Each input channel is equipped with independent surge absorption circuits to resist transient lightning and electromagnetic surge interference from long-distance field wiring. The internal three redundant sampling circuits synchronously scan all 16 channels, and the full-module signal refresh cycle is controlled within 10 milliseconds. The module supports millisecond-level time stamp marking for all channel state change events to realize high-precision SOE sequence of event recording. Each channel has built-in open-circuit continuous diagnosis function, which can detect broken field cables or disconnected contact equipment in real time. Every input channel has independent reverse voltage protection to avoid hardware damage caused by reverse field wiring. The module does not provide built-in field loop power supply; external 24VDC power distribution needs to be arranged through the matched FTA terminal base for wet contact signal loops.

In terms of safety and reliability indicators, the module fully complies with IEC 61508 SIL 3 and IEC 61511 process safety standards, and holds TUV, UL and CE industrial safety certifications. The three internal sampling circuits run synchronous signal collection and hardware voting all the time, which can shield signal distortion caused by single channel hardware failure or electromagnetic interference. Its mean time to safe failure reaches 250,000 hours, and the average maintenance repair time is controlled within 30 minutes due to mandatory rack power-off operation rules. It possesses complete single fault masking capability; damage or communication abnormality of one redundant sampling channel only triggers local fault alarm and will not affect the signal collection and voting judgment of all 16 field loops. All channel open-circuit faults, backplane communication errors and module internal hardware faults will be locked and stored in battery-backed memory, retaining complete fault time stamps for post-accident root cause analysis and factory safety compliance audit.

For environmental and mechanical parameters, the standard operating temperature range is minus 40 degrees Celsius to plus 65 degrees Celsius, while the HT high-temperature variant can stably operate up to 70 degrees Celsius. The spare module storage temperature ranges from minus 40 degrees Celsius to plus 85 degrees Celsius. The allowable relative humidity is 5 percent to 95 percent without condensation, and the cabinet installation protection grade is IP20. It passes standard industrial EMC interference tests including electrostatic discharge, radiated radio frequency interference, surge impact and fast transient pulse interference. The N suffix version strengthens salt fog corrosion resistance for coastal onshore sites, but it is not recommended for long-term continuous deployment on offshore platforms. The module adopts single-slot horizontal plug-in installation inside the Trident main cabinet, relying on natural convection heat dissipation without additional forced cooling fans under full load operation. Its mechanical vibration resistance meets the standards of small petrochemical plants, gas stations and auxiliary thermal power boiler rooms, and low-frequency continuous vibration will not lead to channel signal misjudgment or communication loss.

Two categories of independent hardware interfaces are equipped on the module, including the rear backplane TriBus redundant bus interface and the front panel status indicator matched with external FTA wiring interface.The rear large gold finger connector is the proprietary triple isolated TriBus backplane bus interface, which undertakes three core tasks: receiving 24VDC working power from the rack backplane, realizing three-way isolated bidirectional signal data exchange between the module and three Trident 2101 main processors, and uploading all channel state and fault diagnostic codes to the main control frame in real time.The front panel is equipped with grouped multi-color LED diagnostic indicators without extra external communication ports. The global PASS steady green light represents normal synchronous operation of three redundant sampling circuits. The global red FAULT light lights up when internal hardware failure, three-channel voting inconsistency or mass channel communication abnormality occurs. An independent status indicator is arranged for each of the 16 input channels to directly reflect the real on/off state of the corresponding field contact. There is a mechanical locking handle on the front panel for fixing and extracting the module, which must be fully locked after installation to ensure reliable contact between the gold finger and the backplane bus. All field contact signal wiring cannot be directly connected to the module body; it must pass through a dedicated FTA terminal base connected by shielded ribbon cables, and the FTA is equipped with independent shielding grounding terminals for each channel to standardize single-point grounding construction of field signal cables.

For internal TriBus redundant communication mechanism, the three redundant sampling circuits inside the 2058 correspond one-to-one to the three independent isolated TriBus buses of the Trident rack. Each redundant bus independently transmits the 16-channel contact state data collected by the corresponding sampling circuit to the three main processors. After the main processors receive three groups of synchronous sampling data, they complete unified 2-out-of-3 hardware voting to output the final valid field contact status for safety interlock logic operation. If faults such as TriBus bus disconnection, communication timeout or data CRC check error occur, the front panel global FAULT indicator will be triggered, and classified fault codes with time stamps will be uploaded to TriStation configuration software and central monitoring HMI.The module itself has no independent Ethernet or serial communication ports. All channel diagnosis enable parameters, signal filtering time constants and SOE trigger configuration parameters are compiled and downloaded to the Trident 2101 main processor memory through TriStation software, and automatically synchronized to the 2058 module after rack power restart or module replacement. Operators can set digital debounce filter time for each channel independently to eliminate contact bounce interference of mechanical field switches.

First, triple redundant 16-channel discrete contact signal synchronous collection and hardware voting. Three independent sampling circuits collect the on-off state of 16 field contact loops at the same time. Only the signal state verified by 2-out-of-3 voting will be transmitted to the main processor for safety logic operation. Full channel independent isolation can effectively suppress common-mode noise and ground loop interference generated by long-distance field wiring, and single-channel wiring or sampling circuit faults will only lock the corresponding channel without interfering with the state collection of other safety interlock loops.

Second, per-channel full-loop continuous open-circuit self-diagnosis. The module continuously monitors the integrity of each 24VDC contact signal loop in the background, accurately identifying three typical fault modes including field wire breakage, complete disconnection of contact switches and loss of loop power supply for wet contact circuits. All detected loop faults will light the corresponding channel abnormal indicator and upload fault channel number and occurrence time to the monitoring platform. Historical fault records can be exported completely for safety audit and accident analysis.

Third, millisecond-level SOE sequence of event recording for safety interlock actions. The built-in hardware timestamp unit marks time for all channel state switching, emergency stop trigger and module fault events. The complete event sequence data is stored in the battery-backed memory of the rack main processor, and the data will not be lost after the main power supply of the cabinet is cut off, providing reliable data support for post-trip accident root cause tracing.

Fourth, multi-stage configurable digital debounce filtering for mechanical contact signals. Through TriStation configuration software, maintenance personnel can set independent filter time constants for each channel to suppress high-frequency bounce signals generated by mechanical valves and contactors, avoiding frequent false state flips of safety logic caused by contact jitter without affecting normal fast emergency stop signal response speed.

Fifth, visual local channel state quick judgment via front panel LED indicators. Maintenance staff can directly observe the real-time on-off state of all field contact loops at the cabinet without logging into the remote HMI system, which greatly improves the efficiency of daily equipment inspection and on-site wiring fault troubleshooting.

Sixth, multi-layer surge and reverse voltage electrical protection for field loops. Each channel is equipped with independent surge absorption and reverse connection protection circuits, which can block lightning transient surges and wrong reverse wiring voltage from damaging the internal TMR sampling circuits of the module, reducing hardware replacement costs caused by field wiring construction errors.

First, small and medium petrochemical single-unit ESD safety instrument systems, used to collect valve position feedback contacts, emergency shutdown button signals and reactor safety interlock contact states.Second, onshore oil and gas small station fire and gas safety monitoring systems, collecting dry contact signals from combustible gas detectors, fire alarm devices and pipeline emergency cut-off valve feedback switches.Third, auxiliary industrial boiler SIL 3 safety protection systems, collecting furnace flame detection contacts, boiler overtemperature and overpressure interlock contact signals.Fourth, mini natural gas branch pipeline compressor station safety interlock control, collecting compressor running status, anti-surge valve position and local emergency stop discrete signals.Fifth, low-risk fine chemical single reactor safety monitoring cabinets, collecting reactor agitator stall contacts, safety pressure relief valve feedback and workshop emergency stop button signals.Sixth, renovation and spare parts replacement projects of legacy Trident compact SIS racks equipped with 2058 digital input modules, only matching Trident V7 and V8 firmware platforms and incompatible with large classic Tricon racks with 3000 series main processors.

Three preconditions must be met during installation. First, platform compatibility limit: TRICONEX 2058 only supports Trident series racks running V7 or V8 firmware, and cannot be installed on large Tricon racks equipped with 3003, 3005, 3006 or 3008 main processors. Second, power-off mandatory rule: the entire rack power supply must be completely cut off before plugging or pulling out the 2058 module; online hot-swap operation is strictly prohibited. Third, wiring standard constraints: all field contact signal cables must adopt single or double shielded twisted-pair industrial cables, and all cable shielding layers must realize single-point grounding only at the cabinet ground bar; multi-point grounding on the field equipment side is forbidden to avoid ground loop interference leading to signal misjudgment.The module needs to be horizontally inserted into the dedicated digital input slot of the Trident rack, and the front panel mechanical lock handle must be fully locked to ensure tight contact between the rear gold finger and the backplane TriBus bus. It must be matched with the special supporting FTA terminal base for field contact wiring connection. If deployed in Class I explosive hazardous area cabinets, certified intrinsic safety barriers must be added between the FTA terminals and field dry contact equipment to meet explosion-proof safety specifications. A ventilation gap of no less than 15 centimeters needs to be reserved around the module slot, and high-power heat-generating I/O modules cannot be installed adjacent to the 2058 to prevent overheating exceeding the rated operating temperature and triggering continuous communication fault alarms.

Daily visual inspection needs to confirm that the front panel global PASS indicator keeps steady green, the global FAULT red light is always off, and each channel state LED flashes or lights normally consistent with the actual field contact state without persistent abnormal alarms. Every day, maintenance personnel need to log into the old version TriStation configuration software to check the synchronous running state of the three internal redundant sampling circuits, confirming that there are no continuous TriBus communication error records and channel open-circuit fault accumulation records. Every two weeks, export the full-system SOE event log and module fault log for offline backup storage to avoid log coverage caused by limited memory capacity of the main processor. Every month, clean the dust accumulated on the front panel indicator area, FTA terminal wiring terminals and cabinet ventilation slits, check the operation state of the cabinet cooling fan, and ensure that the ambient temperature around the module is maintained within the standard minus 40 to plus 65 degrees Celsius operating range.

For standard indoor non-interference control rooms, complete module communication function test, channel signal state sampling accuracy verification and memory fault scan need to be carried out every 12 months. For coastal salt fog workshops, furnace-side high-temperature cabinets and medium-interference compressor rooms, the inspection cycle needs to be shortened to 6 months. Before each regular inspection, back up all channel debounce filter parameters, I/O point mapping data and historical SOE fault logs stored in the three Trident 2101 main processors to offline storage media. Use standard 24VDC signal generators to inject on/off state signals into each channel one by one to verify the accuracy of sampling judgment and open-circuit fault alarm sensitivity, and adjust the channel signal threshold parameters in configuration software if signal misjudgment occurs frequently. After completing all test items, save the updated backup program and configuration files, and retain written inspection records including inspection date, operator information and fault test data for factory safety compliance audit.

When a single channel abnormal state indicator keeps lighting, first check whether the corresponding field contact wire is broken, the terminal screw of the FTA is loose or the field switch contact is damaged, and replace the faulty equipment or rework the wiring after eliminating external field faults. If the front panel global FAULT red light is permanently lit and multiple input channels lose normal state sampling at the same time, first cut off the full rack power supply, re-seat the 2058 module and restart the rack to trigger automatic cross-channel program synchronization between the three main processors. If the system diagnostic information reports internal sampling circuit or memory hardware failure of the module, a planned full-unit shutdown maintenance window must be arranged. Cut off the rack power supply, unlock the front mechanical handle, pull out the faulty 2058 module smoothly, insert a spare 2058 module with the same suffix version, lock the handle tightly, restore the rack power supply, wait for the two normal main processors to automatically copy all channel configuration parameters to the spare module, then verify the synchronous running of three redundant channels, full 16-channel signal collection function and TriBus communication stability, and finally clear all historical fault alarm logs. On-site disassembly of internal sampling chips, memory and communication circuit components is forbidden; damaged modules must be returned to official authorized service centers for maintenance or scrapping. Unauthorized disassembly will invalidate all SIL 3 safety certification qualifications of the hardware.

Offline spare TRICONEX 2058 modules need to be stored in a constant temperature dry warehouse with ambient temperature maintained between 0 and 40 degrees Celsius and relative humidity controlled below 70 percent. The modules must be sealed in the original anti-static packaging bags to prevent static electricity from damaging the internal sampling and isolation chips, and avoid direct sunlight, corrosive gas and heavy dust storage environments. Every six months of shelf storage, take out the spare module for a 30-minute power-on aging test to activate internal circuit capacitors and check the backup battery voltage of the main processor matching the system, preventing component performance degradation caused by long-term power-off state. The design service life of the module under rated normal operating conditions is 12 years. All 2058 modules installed on site need to be replaced in batches after reaching the service life to maintain the overall SIL 3 safety integrity level of the entire Trident compact safety instrument system.

Unauthorized modification of internal sampling chips, independent firmware flashing or hardware circuit transformation of TRICONEX 2058 is strictly prohibited. Any modification will void all functional safety certifications and related industrial safety qualification certificates. Do not connect field contact signals with instantaneous peak voltage exceeding 33 VDC to the input terminals for a long time; continuous overvoltage will permanently burn the internal surge isolation and sampling circuits. All maintenance operations involving module plugging, field contact cable replacement or channel filter parameter modification must be operated by certified SIS safety instrument maintenance personnel. Before carrying out rack power-off module replacement maintenance, safety isolation measures for production safety interlock loops must be implemented to avoid loss of full-unit safety logic and accidental equipment trip during shutdown maintenance. Any disassembly or replacement of the 2058 module is forbidden during critical production startup, full-load stable operation or emergency accident handling stages; all module maintenance work must be arranged during planned full-equipment shutdown maintenance windows. This module is completely unsuitable for large complex process new construction SIS projects and long-term offshore platform deployment due to limited channel density, Trident platform exclusive compatibility and weak salt fog anti-corrosion performance.
