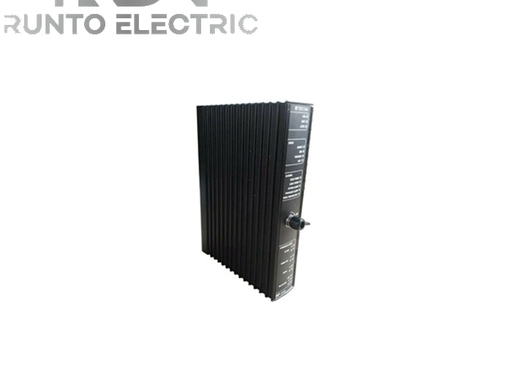

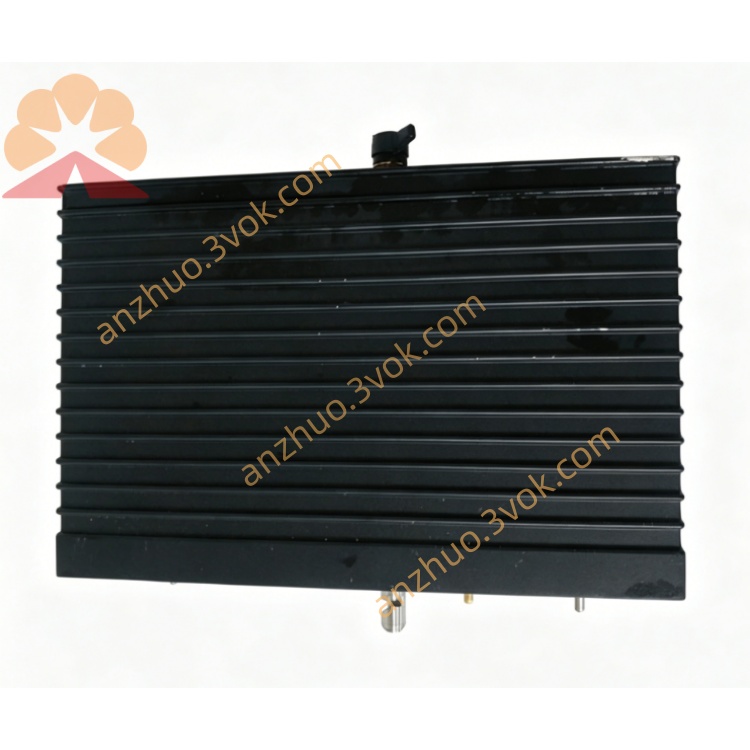

Triconex 3381 triple modular redundant Pulse Input Module
TRICONEX 3381 is a TMR (Triple Modular Redundant) pulse input module for the Tricon V9/V10/V11 safety instrumented systems (SIS). It is designed for high‑speed, high‑accuracy pulse/frequency measurement in turbine speed, flow, and rotary equipment safety monitoring, certified SIL3 (IEC 61508).
Description
1. Product Introduction
TRICONEX 3381 is a triple modular redundant Pulse Input Module (PI Module) for classic Tricon TMR safety instrument systems under Schneider Electric, dedicated to collecting high-speed pulse signals from field speed sensors, turbine probes, flow pulse transmitters and incremental encoders. It adopts full three independent redundant sampling and counting circuits with strict two-out-of-three hardware voting logic, eliminating single-point pulse measurement faults in SIL 3 overspeed protection, flow safety monitoring and rotating equipment safety interlock loops.
This module integrates 6 fully differential channel-isolated pulse input channels, compatible with active magnetic pickup sensors, open-collector pulse transmitters and proximity speed probes. It supports real-time frequency calculation, RPM conversion, pulse cumulative counting and direction discrimination, with built-in configurable digital debounce filtering and full-loop wiring self-diagnosis. It supports online non-stop hot-swap replacement without rack power-off, and runs stably 24/7 under wide temperature, high vibration and strong electromagnetic interference industrial environments. Damage to one internal redundant counting circuit will not interrupt overall pulse data acquisition and safety overspeed trip logic execution. Widely deployed in thermal power turbine protection, petrochemical compressor overspeed safety systems, natural gas flow safety monitoring and offshore rotating machinery F&G safety instrument systems.
2. Model Definition Explanation
The complete model TRICONEX 3381 consists of brand identifier, core hardware classification code and optional configuration suffixes, matched with dedicated terminal base for field pulse sensor wiring:
Prefix TRICONEX: Brand mark, representing Tricon TMR safety control hardware series, separated from non-safety general automation I/O modules.
Four-digit core number 3381: Internal rack pulse input module classification coding. The first digit "3" stands for digital pulse signal input category; the middle two digits "38" mark high-frequency differential pulse counting circuit layout; the last digit "1" represents the base 6-channel isolated differential pulse input hardware platform with built-in frequency/RPM conversion arithmetic unit.
Optional suffix configuration codes for differentiated project demands:
No extra suffix: Standard indoor control room main module body, matched with dedicated pulse signal terminal base, for non-hazardous cabinet installation.
-E: Full English firmware variant; all front panel fault codes, diagnostic prompts and TriStation configuration menu text display in English for overseas international projects.
-IS: Intrinsically safe matching variant with reinforced channel isolation barriers, applicable to Class I explosive hazardous area cabinet deployment.
-HT: High-temperature extended variant, raising stable upper operating temperature to +70°C for high-heat workshop cabinets.
3. Technical Specifications
Electrical Performance
The module draws 24VDC working power from the Tricon rack backplane, rated power consumption below 7.2W, allowable input voltage fluctuation 20VDC ~ 30VDC. It carries 6 fully differential, channel-independent galvanically isolated pulse input channels.
Supported signal types: Magnetic pickup sine wave pulse, open collector square wave, NPN/PNP active pulse
Maximum input pulse frequency: 5000Hz continuous, peak transient 8kHz
Input impedance per differential channel: ≥120kΩ
Isolation withstand voltage: 2000VAC between internal TMR counting circuit and field sensor side
Pulse amplitude detection range: 0.2Vpp ~ 24Vpp, automatically identifies weak magnetic pickup signals
Configurable digital debounce filter: 0.1ms ~ 20ms adjustable per channel to suppress field contact bounce noise
Built-in pulse counting arithmetic: Real-time frequency, RPM, total cumulative pulse volume calculation, configurable pulse weight coefficient for flow meters
Full 6-channel full-scan refresh cycle: ≤20ms, each counting data frame carries millisecond timestamps for high-precision SOE overspeed event recording
Per-channel independent overvoltage protection; single-channel wiring open/short fault only blocks that channel’s pulse acquisition without affecting other measurement loops and system safety interlock logic
No built-in sensor loop power supply; external 24VDC power distribution is required for active pulse transmitters.
Functional Safety & Reliability Index
TRICONEX 3381 fully complies with IEC 61508 SIL 3 and IEC 61511 process safety standards, holding UL, CE, ATEX and IECEx industrial safety certifications. Three internal redundant pulse counting circuits execute strict two-out-of-three hardware voting logic; distorted pulse counting data from any single redundant channel is automatically filtered to prevent false overspeed trip or flow deviation alarm caused by electromagnetic interference or single circuit failure. Hardware mean time to safe failure reaches 315,000 hours; mean time to repair is less than 10 minutes supported by online hot-swap function. It has complete single-fault masking capability; partial channel wiring faults or one redundant circuit damage will not cause full-module pulse measurement failure. All loop fault alarms are latched and stored in non-volatile memory for long-term factory safety audit traceability.
Environmental & Mechanical Parameters
Standard model operating temperature range: -40°C ~ +65°C; HT high-temperature variant extends upper stable operating limit to +70°C. Spare module storage temperature: -40°C ~ +85°C, suitable for long-term warehouse storage. Tolerable relative humidity: 5% ~ 95% without condensation, cabinet installation protection grade IP20. Passes complete industrial EMC anti-interference tests including electrostatic discharge, radiated RF interference, surge impact and fast transient pulse interference. Designed for standard single-slot horizontal installation inside Tricon safety I/O racks, no forced air cooling required under full rated load. Vibration resistance meets offshore oil platform, petrochemical plant and thermal power turbine island industrial standards; long-term low-frequency continuous vibration will not lead to pulse counting loss, frequency drift or channel misdiagnosis.
4. Interface and Communication Configuration
Hardware Interface Layout
The module has two independent hardware interface categories: rear internal backplane system interface and front matched terminal base pulse wiring interface.The rear gold finger dedicated connector is proprietary Tricon TriBus TMR backplane bus interface, responsible for redundant power supply intake, three-way isolated bidirectional pulse counting data exchange between the module and three redundant main CPUs, real-time uploading of module hardware faults and each channel wiring fault codes to the rack mainframe.The front panel is equipped with grouped multi-color LED diagnostic indicators, including global PASS normal running indicator, global FAULT hardware alarm indicator, independent PULSE activity light and LOOP fault alarm light for each of the 6 input channels, enabling maintenance personnel to directly judge whether the field speed sensor outputs valid pulse signals and locate wiring faults at the cabinet without remote HMI viewing. All field pulse sensor wiring terminals are arranged on dedicated supporting terminal base with dense screw-type terminals and independent shielding grounding terminals per channel, supporting crimp connection of double-shielded twisted-pair industrial cables for magnetic pickup and flow pulse transmitter wiring construction.
Internal Backplane Communication Mechanism
Data interaction between TRICONEX 3381 and triple redundant main processors relies on three fully isolated proprietary high-speed TriBus backplane buses, one-to-one corresponding to the three internal pulse counting processing circuits of the module. Each redundant bus independently transmits real-time pulse frequency, RPM value, cumulative pulse count and channel loop fault diagnostic data from each CPU to the PI module. Before uploading counting results to main processors, the module executes two-out-of-three hardware voting on three groups of synchronous pulse measurement values to eliminate data inconsistency caused by single CPU or counting circuit deviation. Faults such as backplane link disconnection, communication timeout and data parity errors light the front panel global red FAULT indicator and upload detailed fault channel number and classification codes to TriStation configuration software and central monitoring HMI.
Pulse Channel Configuration Mode
The module has no independent Ethernet or serial ports; all channel pulse amplitude threshold, debounce filter time, pulse weight coefficient, RPM conversion ratio and open-circuit diagnosis enable/disable parameters are downloaded and stored in Tricon main processor redundant memory, automatically synchronized to the 3381 module after power-on or hot-swap replacement. Operators can independently set counting mode for each channel: speed frequency measurement, totalizer cumulative counting, bidirectional encoder direction discrimination mode, to match different types of field pulse sensors and flow measurement equipment. Differential wiring mode must be selected in configuration software to match two-wire magnetic pickup sensor wiring.
5. Core Functions
- Triple Redundant 6-Channel Isolated Differential High-Speed Pulse CountingThree independent redundant counting circuits synchronously collect differential pulse signals from up to 6 field speed/flow sensors, uploading validated frequency, RPM and cumulative counting data to the mainframe after two-out-of-three voting verification. Fully differential channel isolation greatly suppresses common-mode noise and ground loop interference, solving pulse signal loss and counting deviation problems of long-distance turbine island and compressor workshop wiring that single-ended pulse modules cannot overcome. Faults of individual channels only trigger local LOOP alarm without interfering with normal pulse measurement of other rotating equipment safety monitoring loops.
- Per-Channel Full-Loop Pulse Signal Comprehensive Self-DiagnosisContinuous background diagnosis covers every differential pulse input loop, accurately identifying three typical fault modes: field sensor wiring open circuit, signal short circuit to ground/power, and complete sensor disconnection with no pulse output. All detected loop faults light the corresponding channel red LOOP fault indicator on the front panel, uploading fault channel serial number, fault occurrence timestamp and fault classification codes to the system central monitoring platform. Single-channel loop fault will not shut down full-module pulse acquisition function, and all historical fault records can be exported for factory safety compliance audit and overspeed accident root cause analysis.
- Non-Stop Online Hot-Swap MaintenanceThe module supports plugging and replacement without cutting off the power supply of the entire safety rack. When pulling out a faulty 3381 module, the rack’s three redundant backplane bus architecture ensures the system’s full safety pulse measurement and overspeed interlock logic remains intact without interruption of rotating equipment speed monitoring. After inserting a spare module of the same model and locking front panel fastening screws, the Tricon mainframe automatically completes hardware identification, redundant channel synchronization and all channel pulse configuration parameter copying within 30 seconds; all 6 differential pulse channels resume normal counting and diagnosis functions without manual reconfiguration, eliminating production downtime caused by pulse input module maintenance.
- Multi-Layer Electrical Isolation and Superior Anti-Interference ProtectionEach differential pulse signal channel is equipped with independent optoelectronic isolation barriers with 2000VAC withstand voltage, limiting abnormal energy cross-transmission between field rotating machinery hazardous areas and internal TMR safety circuits, blocking lightning surges, static electricity and transient overvoltage from damaging core rack mainframe hardware. All field pulse sensor cable shielding layers must adopt single-point grounding at the control room cabinet ground bar to eliminate ground loop interference from long-distance turbine wiring. Internal circuit independent partitioning separates each group of differential pulse counting channels to avoid adjacent channel signal crosstalk leading to false pulse counting loss judgment.
- Configurable Pulse Filtering and Multi-Mode Counting ArithmeticThrough TriStation configuration software, operators can set independent digital debounce filter time constants for each channel to suppress high-frequency field contact bounce and electromagnetic noise interference. Built-in dedicated arithmetic unit supports one-click conversion of raw pulse frequency to equipment RPM, and configurable pulse weight coefficient converts cumulative pulse quantity into actual mass/volume flow value for direct HMI display. Three counting modes are optional: instantaneous speed measurement, flow totalizer counting, bidirectional encoder positive/negative rotation discrimination, adapting to turbine speed probes, gas flow pulse meters and screw compressor encoders respectively.
- Visual Independent Channel Pulse Activity On-Site PromptThe front panel carries independent PULSE activity indicator lights for all 6 channels. Maintenance personnel can directly observe real-time pulse signal output status of on-site speed sensors at the cabinet, rapidly locate broken probes or disconnected wiring channels without logging into the control system, greatly improving daily rotating equipment inspection and on-site pulse loop troubleshooting efficiency.
6. Applicable Scenarios
- Thermal Power Plant Turbine Overspeed SIL3 Safety Protection SystemsUsed as core pulse acquisition module for steam turbine safety racks, collecting differential pulse signals from turbine magnetic pickup speed probes, realizing real-time RPM monitoring and overspeed trip interlock protection, the built-in high-frequency pulse processing function meets fast-response overspeed safety logic demands of large generator units.
- Petrochemical Refining Compressor Safety Monitoring SystemsAdapted to compressor island control rooms with severe electromagnetic interference, collecting pulse signals from centrifugal compressor speed probes and process gas flow pulse transmitters, differential isolation eliminates long-distance cable ground loop interference to ensure stable speed safety monitoring of critical compression equipment. The -IS intrinsically safe variant is deployed in Class I explosive hazardous area compressor side control cabinets.
- Natural Gas Transmission Pipeline Flow Safety Measurement SystemsServes station safety interlock racks, collecting pulse output signals from turbine flow meters distributed along long-distance pipelines, calculating real-time gas flow and cumulative total flow, supporting over-flow safety alarm and pipeline shutoff interlock functions.
- Offshore Oil & Gas Platform Rotating Machinery F&G Safety SystemsAdapted to offshore high-humidity, salt-fog, vibration environments, collecting pulse signals from crude oil pump and separator motor speed sensors, real-time monitoring rotating equipment abnormal speed deviation for fire and gas safety pre-alarm.
- Large Coal Chemical Furnace and Compressor Safety Instrument SystemsDeployed in Class I explosive hazardous area control rooms with -IS intrinsically safe configuration, collecting speed pulse signals from furnace induced draft fans and raw material compressors, realizing multi-unit rotating equipment centralized safety speed monitoring.
- Medium-Sized Fine Chemical Production Workshop Reactor Agitator Safety MonitoringSuitable for chemical workshop onshore control rooms, collecting pulse signals from reactor agitator speed encoders, monitoring agitator stall and overspeed abnormal conditions to trigger reactor temperature/pressure safety interlock protection.
7. Operation and Maintenance Instructions
Installation Requirements
TRICONEX 3381 main module must only be installed in dedicated pulse input single slots of standard Tricon TMR safety I/O racks, inserted horizontally into the card slot, front panel fastening screws fully locked to guarantee reliable contact between rear backplane gold finger connector and rack bus. Must be matched with dedicated pulse signal terminal base for field speed sensor wiring connection. All field pulse sensor signal cables adopt double-shielded twisted-pair industrial cables; cable shielding layers must be single-point grounded at control room cabinet ground bar, multi-point grounding on field probe/transmitter side is strictly prohibited to prevent ground loop induced pulse counting deviation. For intrinsically safe hazardous area cabinet installation, certified safety isolation barriers must be added between terminal base pulse input terminals and field magnetic pickup sensors, strictly complying with intrinsic safety circuit parameter matching specifications. A ventilation gap of at least 15 centimeters must be reserved around the rack card slot; high-power heat-generating modules cannot be stacked beside the 3381 module to avoid overheating exceeding rated operating temperature and triggering channel overvoltage protection faults. Separate external 24VDC power supplies must be configured for active pulse transmitters, as the module provides no built-in loop power supply.
Daily Routine Inspection Standards
Conduct daily visual inspection to confirm the front panel PASS indicator stays steady green, the global FAULT alarm light remains off, and each channel PULSE activity light flashes synchronously with field sensor pulse output without abnormal LOOP fault alarms. Log in to TriStation configuration software or system central HMI every day to check all 6 pulse input channel frequency/RPM counting status, confirming no records of wiring open circuit, signal loss, channel overvoltage or internal hardware faults. Every week, compare module-displayed RPM/flow values with local on-site speed indicator readings to judge abnormal pulse counting drift or signal attenuation. Every month, clean dust accumulated on module front indicators, supporting terminal base wiring terminals and rack ventilation slits, check cabinet cooling fan operation status, ensure ambient temperature around the module stays within the specified -40°C ~ +65°C operating range.
Regular Inspection and Calibration Cycle
Under standard indoor control room conditions, full pulse channel frequency counting accuracy testing and filter parameter calibration shall be performed every 12 months; for offshore platforms, coastal salt-fog workshops and high-temperature turbine island areas, the inspection cycle is shortened to 6 months. Before inspection, back up all channel debounce filter settings, RPM conversion ratios and pulse weight parameters stored in the Tricon main processor’s redundant memory. Use precision variable frequency pulse signal generators to inject standard low/high frequency differential pulse signals into each channel one by one, verify counting accuracy and fault alarm judgment sensitivity, adjust signal amplitude threshold parameters in configuration software if counting loss or false loop fault misjudgment occurs. After completing all channel tests, save updated configuration data to redundant system memory, retain written inspection records including inspection date, operator name and fault test data for factory safety compliance audit.
Common Fault Handling Procedures
When a single channel LOOP fault indicator lights up, first inspect the corresponding field magnetic pickup/flow pulse transmitter and differential signal wiring for breakage, short circuit or loose terminal joints, replace damaged sensors or rework wiring after eliminating external field equipment faults. If the front panel global FAULT red light is permanently lit and multiple pulse channels lose counting capability simultaneously, check rack 24VDC power supply voltage and whether the backplane connector has dust accumulation, corrosion or poor contact. If system diagnostics report internal pulse counting circuit hardware failure of the module, direct hot-swap maintenance can be performed without rack power-off: unlock front fastening screws, steadily pull out the faulty module, insert a spare TRICONEX 3381 module of the same suffix version, lock screws tightly, wait for automatic synchronization of pulse channel configuration parameters to complete, then verify all 6 differential pulse channels resume normal counting and diagnosis functions and clear historical fault alarm logs. On-site disassembly of internal circuit components is forbidden; damaged modules must be returned to official authorized service centers for repair or scrapping. Unauthorized disassembly invalidates all SIL3 safety certifications of the hardware.
Spare Module Storage and Long-Term Service Management
Offline spare TRICONEX 3381 modules shall be stored in a constant-temperature dry warehouse with ambient temperature maintained at 0°C ~ 40°C and relative humidity controlled below 70%. Modules must be sealed in original anti-static packaging bags to prevent static electricity damage to internal differential pulse counting and isolation chips, avoiding direct sunlight, corrosive gas and heavy dust environments. Every six months of shelf storage, take out spare modules for a 30-minute power-on aging test to activate internal circuit capacitors and prevent component performance degradation from long-term power-off state. The module’s design service life under rated normal operating conditions is 15 years; all on-site installed 3381 modules shall be batch-replaced upon reaching service life to maintain the overall SIL3 safety integrity level of the entire rotating equipment safety instrument system.
Maintenance Safety Prohibitions
Unauthorized modification of internal pulse counting chips, independent firmware flashing or hardware wiring transformation of TRICONEX 3381 is strictly prohibited. Any modification voids functional safety certification and related industrial safety qualification certificates. Do not connect field differential pulse signals with instantaneous peak voltage exceeding 26Vpp to input terminals for long durations; continuous overvoltage will permanently burn internal optoelectronic isolation and pulse sampling circuits. All maintenance operations involving module plugging, field pulse sensor cable replacement or channel filter/RPM parameter modification must be performed by certified SIS safety instrument maintenance personnel. Safety isolation measures for rotating equipment safety monitoring loops must be implemented before operation to avoid accidental overspeed trip logic mis-triggering during maintenance. Hot-swap replacement of the module is forbidden during critical unit startup, full-load operation or emergency accident handling stages; all module maintenance work must be scheduled during planned equipment shutdown maintenance windows.
