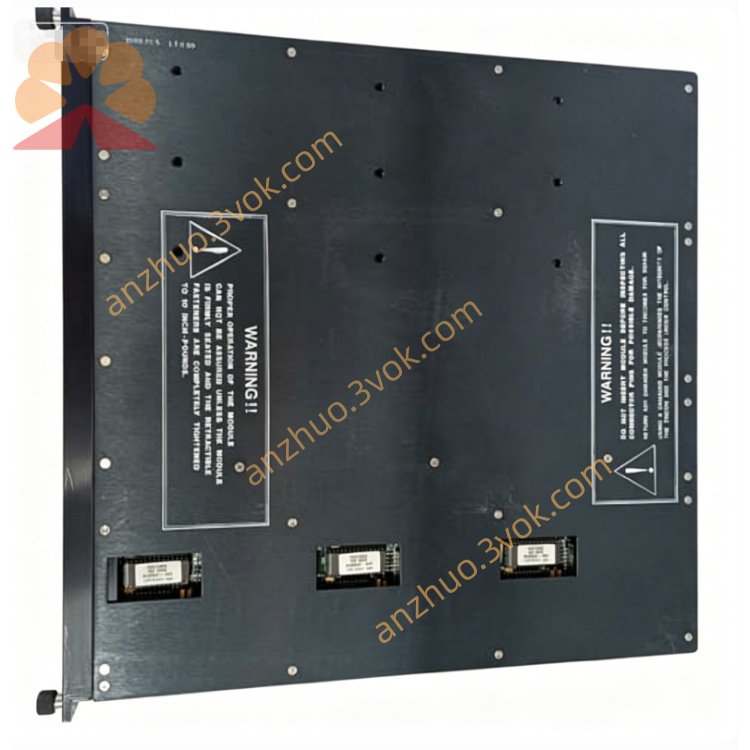

TRICONEX 3700 triple modular redundant non-isolated differential analog input module
TRICONEX 3700 is a 32-channel isolated analog input module with triple modular redundancy (TMR), designed for Tricon V9/V10/V11 SIS safety systems. It accepts 0–5VDC or 4–20mA (via 250Ω shunt) field signals, providing high accuracy and SIL3 compliance for safety-critical analog sensing.
Description
1. Product Introduction
TRICONEX 3700 is a triple modular redundant non-isolated differential analog input module for Tricon TMR safety instrument systems under Schneider Electric, serving as the foundational 32-channel differential signal acquisition hardware in the 3700 analog series, with the upgraded variant named 3700A. It adopts full three independent redundant sampling circuits and two-out-of-three hardware voting logic to eliminate single-point signal acquisition faults for SIL 3 safety monitoring loops.
This module integrates 32 DC-coupled differential input channels, natively supporting 0–5VDC differential voltage signals; matched with external 250Ω precision shunt resistors, it can collect 0–20mA analog current signals from field transmitters. The differential design delivers outstanding common-mode noise suppression, suitable for long-distance field wiring with severe electromagnetic interference. Different from isolated differential module 3701, the 3700 cancels per-channel galvanic isolation between field side and internal TMR circuits to reduce cost and power consumption, while retaining full-channel continuous self-diagnosis, signal filtering and online hot-swap capabilities. It operates 24/7 stably in wide-temperature, high-vibration industrial environments, and single redundant circuit damage will not interrupt overall analog data collection and safety interlock logic execution. Widely deployed in petrochemical ESD, offshore fire & gas protection, natural gas compressor stations, thermal power boiler safety monitoring and general chemical reactor safety instrument systems.
2. Model Definition Explanation
The complete model TRICONEX 3700 consists of brand identifier, core hardware classification code and optional configuration suffixes; the letter suffix "A" represents the upgraded 3700A enhanced version:
Prefix TRICONEX: Brand mark, representing Tricon TMR safety control hardware series, distinguished from non-safety general automation modules.
Four-digit core number 3700: Internal rack analog I/O classification coding. The first digit "3" stands for analog input/output category; the middle two digits "70" mark differential analog sampling circuit layout; the last digit "0" represents the base 32-channel non-isolated differential 0–5VDC input hardware platform without built-in field loop power supply.
Optional suffix configuration codes for differentiated project demands:
No extra suffix: Standard indoor control room base version, universal 0–5VDC differential input, non-isolated channel design for non-hazardous cabinet installation.
-E: Full English firmware variant; all front panel fault codes, diagnostic prompts and TriStation configuration text display in English for overseas international projects.
-HT: High-temperature extended variant, raising stable upper operating temperature to +70°C for high-heat workshop cabinets.
Suffix "A" (3700A): Upgraded version with 6% extended over-range measurement, optimized noise filtering algorithm and expanded fault log storage capacity compared with original 3700.
3. Technical Specifications
Electrical Performance
The module draws 24VDC working power from the Tricon rack backplane, rated power consumption below 6.8W, allowable input voltage fluctuation 20VDC to 30VDC. It carries 32 DC-coupled differential input channels, nominal signal range 0–5VDC; external 250Ω shunt resistors support 0–20mA current signal acquisition.Key electrical parameters:
DC input minimum impedance: 30MΩ, effectively reducing long-wiring signal attenuation
Common-mode rejection ratio: -80dB (DC~100Hz), common-mode voltage range: -12V ~ +12V peak
Leg-to-leg channel internal isolation: 200kΩ typical, no independent galvanic isolation between field and TMR core circuits
Overvoltage protection withstand: 150VDC continuous for each channel
A/D conversion resolution: 12-bit; full-scale measurement accuracy better than 0.15% FSR within 0°C~60°C
Full 32-channel full-scan refresh cycle: 55ms; each sampling frame carries millisecond timestamps for high-precision SOE recording
Single-channel independent overvoltage protection; single-channel wiring fault only blocks that channel’s sampling without affecting other loops and system safety logic
No built-in sensor loop power supply; separate external power distribution is required for field voltage/current transmitters.
Functional Safety & Reliability Index
TRICONEX 3700 fully complies with IEC 61508 SIL 3 and IEC 61511 process safety standards, and holds UL, CE, ATEX and IECEx industrial safety certifications. Three internal redundant sampling circuits execute strict two-out-of-three hardware voting; distorted sampling data from any single redundant channel is automatically filtered to prevent false safety interlock triggers caused by electromagnetic interference or single circuit failure. Hardware MTTFS (Mean Time To Safe Failure) reaches 310,000 hours; MTTR (Mean Time To Repair) is less than 10 minutes supported by online hot-swap function. It has complete single-fault masking capability; partial channel faults or one redundant circuit damage will not cause full-module sampling failure. All loop fault alarms are latched and stored in non-volatile memory for long-term safety audit traceability.
Environmental & Mechanical Parameters
Standard model operating temperature range: -40°C ~ +65°C; HT high-temperature variant extends upper limit to +70°C. Spare module storage temperature: -40°C ~ +85°C, suitable for long-term warehouse storage. Tolerable relative humidity: 5% ~ 95% without condensation. Passes complete industrial EMC tests including electrostatic discharge, radiated RF interference, surge impact and fast transient pulse interference. Designed for single-slot horizontal installation in standard Tricon safety I/O racks, no forced air cooling required under full load. Vibration resistance meets onshore petrochemical, thermal power and conventional gas station standards; long-term low-frequency continuous vibration will not cause sampling drift or channel misdiagnosis. Not recommended for offshore platforms with severe lightning surge due to lack of per-channel galvanic isolation.
4. Interface and Communication Configuration
Hardware Interface Layout
The module has two independent hardware interface categories: rear internal backplane system interface and front field signal wiring interface.The rear gold finger dedicated connector is the proprietary Tricon TMR backplane bus interface, responsible for redundant power supply intake, three-way isolated bidirectional data exchange between the module and three redundant main CPUs, and real-time upload of hardware and channel fault codes to the rack mainframe.The front panel is equipped with dense screw-type terminal blocks corresponding to 32 differential input channels, independent shielding grounding terminals per signal group, and multi-color LED diagnostic indicators. Indicators separately display module global PASS normal running status, global FAULT hardware alarm, and grouped channel fault warning lights, enabling fast on-site visual positioning of abnormal signal loops. All terminals support crimp connection of double-shielded twisted-pair industrial cables for field sensor centralized wiring.
Internal Backplane Communication Mechanism
Data interaction between TRICONEX 3700 and triple redundant main processors relies on three fully isolated proprietary high-speed backplane buses, one-to-one corresponding to the three internal sampling processing circuits of the module. Each redundant bus independently transmits real-time differential sampling values, channel range configuration parameters and loop fault diagnostic data from each CPU to the analog input module. Before uploading sampling data to main processors, the module executes two-out-of-three hardware voting on three groups of synchronous differential sampling values to eliminate data inconsistency caused by single CPU or sampling circuit deviation. Faults such as backplane link disconnection, communication timeout and data parity errors trigger the front panel red fault light and upload detailed fault location codes to TriStation configuration software and central HMI.
Input Channel Configuration Mode
The module has no independent Ethernet or serial ports; all channel range settings, digital filtering time constants, engineering unit conversion formulas and fault threshold limits are downloaded and stored in the Tricon main processor’s redundant memory, and automatically synchronized to the 3700 module after power-on or hot-swap replacement. Operators can independently enable/disable open-circuit diagnosis, set high/low over-limit alarm thresholds for each channel, and switch between voltage and current signal mode according to field sensor wiring with shunt resistors. Differential wiring mode must be selected in configuration software to match field two-wire differential sensor wiring.
5. Core Functions
- Triple Redundant 32-Channel Non-Isolated Differential Signal SamplingThree independent sampling circuits synchronously collect 0–5VDC differential voltage signals (or 0–20mA with external shunt resistors) from up to 32 field sensors, uploading validated sampling data to the mainframe after two-out-of-three voting verification. Differential design greatly suppresses common-mode noise and ground loop interference, solving signal distortion issues of long-distance field wiring that single-ended modules cannot overcome. Without per-channel galvanic isolation, the module features lower power consumption and cost, suitable for control rooms with complete system-level isolation protection. Faults of individual channels only trigger local group alarms without interfering with normal sampling of other safety monitoring loops, balancing high channel density and economy.
- Per-Channel Full-Loop Comprehensive Self-DiagnosisContinuous background diagnosis covers every differential input loop, identifying multiple core fault modes: field wiring open circuit, signal exceeding 0–5VDC nominal range (over-range/under-range), internal sampling circuit abnormality and loose terminal wiring. All detected loop faults light the corresponding group red fault indicator on the front panel, uploading fault channel number, timestamp and fault classification codes to the central monitoring platform. Single-channel faults will not shut down full-module sampling, and all fault records can be exported for factory safety compliance audit and accident root cause analysis. The upgraded 3700A expands fault log storage capacity to retain longer-term historical records.
- Non-Stop Online Hot-Swap MaintenanceThe module supports plugging and replacement without cutting off the entire safety rack power supply. When pulling out a faulty 3700 module, the rack’s three redundant backplane bus architecture ensures the system’s full safety analog sampling logic remains intact without interruption of process parameter monitoring. After inserting a spare module of the same model and locking front fastening screws, the Tricon mainframe automatically completes hardware identification, redundant channel synchronization and full channel configuration parameter copying within 30 seconds; all 32 differential channels resume normal sampling and diagnosis without manual reconfiguration, eliminating production downtime caused by analog module maintenance.
- System-Level Isolation Matching and Noise SuppressionAlthough lacking per-channel optoelectronic isolation, the module relies on cabinet-level safety isolation barriers installed between module terminals and field sensors to block lightning surges, static electricity and transient overvoltage from damaging core rack hardware. All field signal cable shielding layers must adopt single-point grounding at the control room cabinet ground bar to eliminate ground loop interference from long wiring. Internal circuit partitioning separates each group of differential sampling channels to avoid crosstalk and false over-range judgment between adjacent signal loops.
- Configurable Sampling Filtering and Precision CalibrationThrough TriStation configuration software, operators can set independent digital filter time constants for each channel to suppress high-frequency field noise fluctuations. The upgraded 3700A adds 6% extended over-range detection to capture transient voltage peaks exceeding 5VDC for early warning of abnormal process surges, while the original 3700 only supports standard fixed range detection. Independent engineering unit conversion formulas can be assigned to each channel, converting raw 0–5VDC differential sampling values into physical quantities such as pressure, temperature and liquid level for direct HMI display. The system supports offline single-point full-scale calibration for each channel to compensate long-term measurement drift.
- Grouped Fault Visual Quick LocationThe front panel adopts grouped fault indicator layout for 32 differential channels instead of single-point independent lights, simplifying panel layout while allowing maintenance personnel to rapidly locate which terminal wiring group has abnormal signals at the cabinet, improving daily inspection and troubleshooting efficiency for mass analog differential signal loops.
6. Applicable Scenarios
- Medium and Large Petrochemical Refining ESD and Process Safety Monitoring SystemsUsed as economical high-density differential signal acquisition module for crude oil distillation, catalytic cracking and hydrogenation unit safety racks installed in well-shielded onshore control rooms, collecting differential voltage signals from reactor temperature transmitters, pipeline pressure sensors and storage tank liquid level detectors. Differential sampling eliminates ground loop interference from long-distance workshop wiring.
- Onshore Oil & Gas Station Fire and Gas Protection SystemsAdapted to onshore gas station control rooms with moderate electromagnetic interference, collecting differential signals from wellhead pressure sensors, separator liquid level transmitters and combustible gas concentration detectors; matched with external safety isolation barriers to meet Class I hazardous area cabinet deployment requirements.
- Natural Gas Transmission Pipeline Compressor and Storage Station Safety SystemsServes onshore station safety interlock racks, collecting differential analog signals from widely distributed pipeline pressure, flow and tank liquid level sensors across valve groups, supporting unified over-limit safety alarms and emergency interlock triggers for scattered pipeline process parameters.
- Conventional Thermal Power Plant Boiler and Auxiliary Machine Safety Protection SystemsApplied in medium-sized boiler SIS racks, collecting differential voltage signals from furnace temperature sensors, steam pressure transmitters and drum water level detectors, realizing high-density real-time monitoring of boiler critical safety parameters and overtemperature/overpressure pre-alarm functions.
- Medium-Sized Fine Chemical and Pharmaceutical Non-Offshore Production WorkshopsDeployed in Class I explosive hazardous area control rooms with matched external safety isolation barriers, collecting reactor temperature, pressure and toxic gas concentration differential signals from multiple production workshops to realize centralized safety monitoring of multi-batch reaction equipment.
- Coal Chemical and Hazardous Waste Incineration Plant Onshore Safety MonitoringSuitable for onshore production plants with large-area distributed storage tanks and incinerators, collecting scattered tank liquid level, furnace temperature and flue gas pressure differential signals, maintaining stable differential sampling performance under high-dust and slightly corrosive field indoor conditions.
7. Operation and Maintenance Instructions
Installation Requirements
TRICONEX 3700 must only be installed in dedicated analog input single slots of standard Tricon TMR safety I/O racks, inserted horizontally into the card slot, with front panel fastening screws fully locked to guarantee reliable contact between the rear backplane gold finger connector and rack bus. All field sensor signal cables must adopt double-shielded twisted-pair industrial cables; cable shielding layers must be single-point grounded at the control room cabinet ground bar, multi-point grounding on field sensor side is strictly prohibited to prevent ground loop induced interference. For hazardous area cabinet installation, certified external safety isolation barriers must be added between module front differential input terminals and field sensors, strictly complying with intrinsic safety circuit parameter matching specifications, as the module itself has no per-channel galvanic isolation. A ventilation gap of at least 15 centimeters must be reserved around the rack card slot; high-power heat-generating modules cannot be stacked beside the 3700 module to avoid overheating exceeding rated operating temperature and triggering channel overvoltage protection faults. Separate external 24VDC power supplies must be configured for field differential voltage sensors, as the module provides no built-in loop power supply.
Daily Routine Inspection Standards
Conduct daily visual inspection to confirm the front panel PASS indicator stays steady green, the global FAULT alarm light remains off, and no grouped channel fault lights illuminate. Log in to TriStation configuration software or system central HMI every day to check all 32 differential input channel sampling status, confirming no records of wiring open circuit, signal over-range, channel overvoltage or internal hardware faults. Every week, compare module-displayed differential sampling values with local field sensor readings to judge abnormal signal attenuation or sampling drift. Every month, clean dust accumulated on module front input terminals and rack ventilation slits, check cabinet cooling fan operation, and ensure ambient temperature around the module stays within the specified -40°C ~ +65°C operating range. For 3700 base version, manually export fault logs every two weeks to avoid log coverage due to limited storage space.
Regular Inspection and Calibration Cycle
Under standard indoor control room conditions, full differential channel sampling accuracy testing and range calibration shall be performed every 12 months; for coastal salt-fog workshops and high-temperature chemical production areas, the inspection cycle is shortened to 6 months. Before inspection, back up all channel filter settings, range limits and engineering unit conversion parameters stored in the Tricon main processor’s redundant memory. Use precision 0–5VDC differential signal generators to inject standard 0V, 2.5V and 5V calibration signals into each channel group one by one, verify sampling accuracy, and adjust offset/gain compensation parameters in configuration software if measurement deviation exceeds tolerance. After completing all channel tests, save updated configuration data to redundant system memory, and retain written inspection records including inspection date, operator name and fault test data for factory safety compliance audit.
Common Fault Handling Procedures
When a grouped channel fault indicator lights up, first inspect the corresponding field differential sensor and signal wiring for breakage, short circuit or loose terminal joints; replace damaged sensors or rework wiring after eliminating external field equipment faults, and check whether the matched safety isolation barrier is damaged. If the front panel global FAULT red light is permanently lit and multiple channel groups lose sampling simultaneously, check rack 24VDC power supply voltage and whether the backplane connector has dust accumulation, corrosion or poor contact. If system diagnostics report internal sampling circuit hardware failure of the module, direct hot-swap maintenance can be performed without rack power-off: unlock front fastening screws, steadily pull out the faulty module, insert a spare TRICONEX 3700 module of the same suffix version, lock screws tightly, wait for automatic synchronization of channel configuration parameters to complete, then verify all 32 differential channels resume normal sampling and diagnosis functions and clear historical fault alarm logs. On-site disassembly of internal circuit components is forbidden; damaged modules must be returned to official authorized service centers for repair or scrapping. Unauthorized disassembly invalidates all SIL3 safety certifications of the hardware.
Spare Module Storage and Long-Term Service Management
Offline spare TRICONEX 3700 modules shall be stored in a constant-temperature dry warehouse with ambient temperature maintained at 0°C ~ 40°C and relative humidity controlled below 70%. Modules must be sealed in original anti-static packaging bags to prevent static electricity damage to internal differential sampling chips, avoiding direct sunlight, corrosive gas and heavy dust environments. Every six months of shelf storage, take out spare modules for a 30-minute power-on aging test to activate internal circuit capacitors and prevent component performance degradation from long-term power-off. The module’s design service life under rated normal operating conditions is 15 years; all on-site installed 3700 modules shall be batch-replaced upon reaching service life to maintain the overall SIL3 safety integrity level of the entire SIS system.
Maintenance Safety Prohibitions
Unauthorized modification of internal sampling chips, independent firmware flashing or hardware wiring transformation of TRICONEX 3700 is strictly prohibited. Any modification voids functional safety certification and related industrial safety qualification certificates. Do not connect field differential signals with instantaneous voltage exceeding 12VDC to input terminals for long durations; continuous overvoltage will permanently burn internal sampling circuits without per-channel isolation barriers. All maintenance operations involving module plugging, field signal cable replacement or channel range/filter parameter modification must be performed by certified SIS safety instrument maintenance personnel. Safety isolation measures for production safety monitoring loops must be implemented before operation to avoid accidental triggering of emergency shutdown interlock logic during maintenance. Hot-swap replacement of the module is forbidden during critical production startup, shutdown or emergency accident handling stages; all module maintenance work must be scheduled during planned equipment shutdown maintenance windows. This module is not recommended for new offshore platform projects due to lack of built-in channel isolation.
