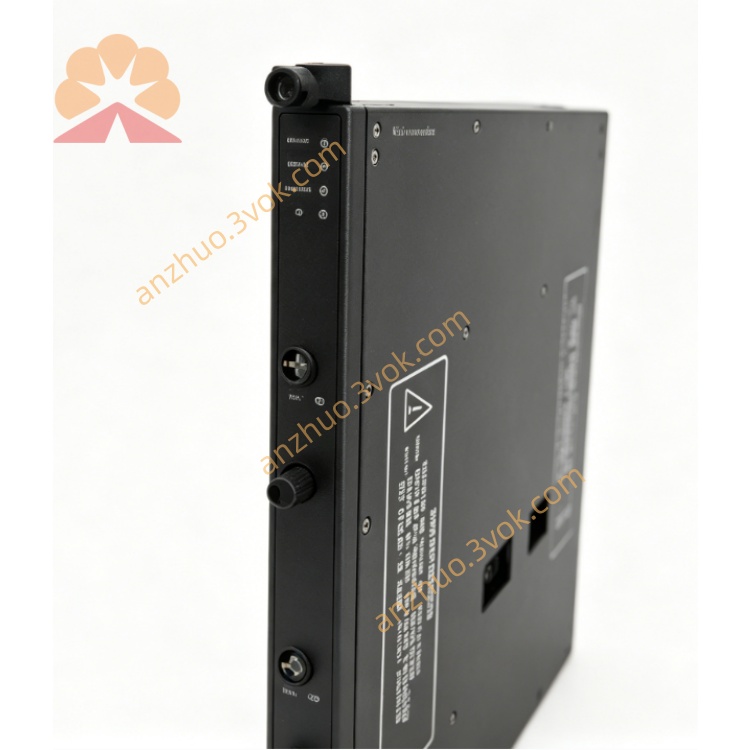

TRICONEX 4200 triple modular redundant fiber-optic remote extender module (RXM)
TRICONEX 4200 is a triple modular redundant fiber-optic remote extender module (RXM) belonging to the Tricon TMR safety instrument system product line under Schneider Electric. It acts as a long-distance high-reliability signal bridge between the central main safety chassis and distributed remote I/O racks, adopting full three-channel redundant hardware architecture to eliminate single-point transmission faults in SIL 3 safety control loops.
Different from the cable-type remote extender 4201, the 4200 uses multi-mode fiber optic as the transmission medium, which completely isolates electromagnetic interference between control rooms and field hazardous areas and greatly extends the signal transmission distance. It supports bidirectional synchronous transmission of all analog and digital safety I/O signals, executes two-out-of-three hardware voting on all transmitted data, and carries comprehensive full-link self-diagnosis functions. This module is non-hot-swappable and requires rack power-off for disassembly and replacement. It can operate stably 24/7 in high vibration, salt fog, wide temperature and strong electromagnetic interference industrial environments, and will not interrupt safety interlock logic execution when a single redundant channel fails. It is widely deployed in large-area scattered production facilities where long-distance signal extension and high anti-interference performance are required.
Description
1. Product Introduction
TRICONEX 4200 is a triple modular redundant fiber-optic remote extender module (RXM) belonging to the Tricon TMR safety instrument system product line under Schneider Electric. It acts as a long-distance high-reliability signal bridge between the central main safety chassis and distributed remote I/O racks, adopting full three-channel redundant hardware architecture to eliminate single-point transmission faults in SIL 3 safety control loops.Different from the cable-type remote extender 4201, the 4200 uses multi-mode fiber optic as the transmission medium, which completely isolates electromagnetic interference between control rooms and field hazardous areas and greatly extends the signal transmission distance. It supports bidirectional synchronous transmission of all analog and digital safety I/O signals, executes two-out-of-three hardware voting on all transmitted data, and carries comprehensive full-link self-diagnosis functions. This module is non-hot-swappable and requires rack power-off for disassembly and replacement. It can operate stably 24/7 in high vibration, salt fog, wide temperature and strong electromagnetic interference industrial environments, and will not interrupt safety interlock logic execution when a single redundant channel fails. It is widely deployed in large-area scattered production facilities where long-distance signal extension and high anti-interference performance are required.
2. Model Definition Explanation
The complete model TRICONEX 4200 consists of brand identifier, core classification code and optional configuration suffixes:
Prefix TRICONEX: Brand mark, representing the Tricon TMR safety control hardware series, distinguished from general non-safety control modules of other product lines.
Four-digit core number 4200: Internal hardware classification coding of rack-mounted remote extender modules. The first digit "4" stands for remote extension communication interface category; the middle digit "2" marks long-distance signal transmission circuit layout; the last two digits "00" represent the base fiber-optic remote extender version without built-in cable signal conditioning circuits, dedicated to multi-mode fiber transmission.
Optional suffix configuration codes attached after 4200 for differentiated project demands:
No suffix: Standard universal multi-mode fiber version, equipped with ST-type fiber optic interfaces, matched with 62.5/125μm multi-mode fiber cables.
-E: Full English firmware variant, all front panel diagnostic alarm codes and prompt text displayed in English for overseas international projects.
-IS: Intrinsically safe enhanced version with reinforced optical isolation barriers, applicable to Class I explosive hazardous area remote cabinet installation.
-HT: High-temperature extended operating variant, suitable for workshop ambient temperature up to +70°C.
3. Technical Specifications
Electrical Performance
The module obtains 24VDC working power from the Tricon rack backplane, rated power consumption controlled below 6W, normal input voltage range from 20VDC to 30VDC. Each of the three redundant optical transmission channels adopts complete electrical isolation between the main chassis side and remote I/O rack side, with infinite isolation withstand voltage through fiber medium to completely block surge, static and electromagnetic interference transmitted by signal lines. The fiber communication baud rate is fixed at 375kbps; single-channel maximum transmission distance reaches 12 kilometers with standard multi-mode fiber cables, and one single 4200 module can connect up to three independent remote I/O racks. The internal signal forwarding refresh cycle is controlled within 20ms, each transmitted safety variable frame carries independent millisecond timestamps to ensure synchronous data consistency between central rack and remote racks. Each optical channel is equipped with independent over-power and link-loss protection; single fiber circuit failure only cuts off data transmission of the corresponding redundant channel without affecting the other two channels and overall system safety logic operation.
Functional Safety & Reliability Index
Fully compliant with IEC 61508 SIL 3 and IEC 61511 process safety standards, passed UL, CE, ATEX and IECEx industrial safety certifications. The three internal optical transmission circuits adopt two-out-of-three hardware voting logic; distorted or abnormal signals generated by any single redundant channel will be automatically filtered without triggering false safety interlock actions. Hardware mean time to safe failure exceeds 300,000 hours; mean time to repair is longer than cable extenders due to power-off replacement requirements, generally controlled within 30 minutes after planned shutdown. It has complete single-fault masking capability; fiber cable disconnection of partial remote racks or damage to one internal redundant optical circuit will not cause overall signal transmission interruption of the module. All fault alarm records are latched and stored in non-volatile memory for long-term safety audit traceability.
Environmental & Mechanical Parameters
Standard model operating ambient temperature range covers -40°C to +65°C; high-temperature variant extends upper limit to +70°C. Storage temperature range for spare modules spans -40°C to +85°C, suitable for long-term warehouse storage. Tolerable relative humidity ranges from 5% to 95% without condensation. Passes complete industrial EMC anti-interference tests including electrostatic discharge, radiated radio frequency interference, surge impact and fast transient pulse interference. The module occupies three continuous horizontal card slots of standard Tricon safety I/O rack, no forced air cooling required under full rated load. Mechanical vibration resistance meets offshore oil platform, petrochemical plant and thermal power plant industrial standards; long-term low-frequency continuous vibration will not lead to optical signal attenuation, transmission delay or link disconnection.
4. Interface and Communication Configuration
Hardware Interface Layout
The module integrates two types of independent hardware interfaces: rear internal backplane system interface and front fiber-optic communication wiring interface.The rear gold finger dedicated connector is the proprietary Tricon TMR backplane bus interface, responsible for redundant power supply access, three-way isolated data exchange between the module and three redundant main CPU boards, and real-time uploading of hardware fault signals to the rack mainframe.The front panel is equipped with three groups of ST-type fiber optic transmitting and receiving interfaces corresponding to A/B/C three redundant channels, multi-color LED diagnostic indicator lights, and fiber cable dust-proof protection covers. The front panel indicators separately display module overall normal operation status, global hardware fault alarm, three redundant optical channel running status and remote rack link loss alarm status, supporting quick on-site visual inspection. Each ST fiber port is equipped with independent dust-proof and anti-light interference structures to avoid signal distortion caused by dust or stray light.
Internal Backplane Communication Mechanism
Data interaction between TRICONEX 4200 and triple redundant main processors relies on three completely isolated proprietary high-speed backplane buses, corresponding one-to-one with the three internal optical transmission circuits of the module. Each redundant bus independently transmits safety interlock logic states, remote analog/digital process variables and channel fault diagnostic information from each CPU to the 4200 module. Before forwarding signals to remote I/O racks through fiber, the module executes two-out-of-three hardware voting on three groups of synchronous data to eliminate data inconsistency caused by single CPU deviation. Faults such as backplane link disconnection, communication timeout and data parity errors will trigger the front panel fault light and upload detailed fault codes to TriStation configuration software and central HMI.
Fiber-Optic Remote Transmission Configuration
The module does not carry independent Ethernet or serial communication ports; all remote signal interaction adopts proprietary Tricon differential optical transmission mode through multi-mode fiber cables. Each group of fiber transmit-receive ports corresponds to a complete set of three redundant signal transmission circuits, realizing physical isolation between different remote rack signal groups. All remote channel signal type configuration, range setting and fault threshold parameters are downloaded and stored in the redundant memory of Tricon main processors, and automatically synchronized to the 4200 module after rack power restart. The module supports one-to-many signal mapping, realizing centralized management of multiple distributed remote I/O racks scattered in different production zones through a single 4200 module installed in central rack.
5. Core Functions
- Triple Redundant Long-Distance Fiber-Optic Signal ExtensionThree independent optical transmission circuits run synchronously to forward analog and digital safety signals between central Tricon main rack and scattered remote I/O racks. The two-out-of-three voting mechanism automatically rejects abnormal signals caused by long-distance fiber aging, optical port dust pollution or single transmission circuit failure, avoiding false emergency shutdown triggered by distorted remote instrument signals. Single fiber cable breakage or remote rack power-off only affects corresponding signal groups, and other remote signal loops maintain normal transmission without loss of critical safety interlock signals. The fiber medium eliminates ground loop interference fundamentally, solving the signal distortion problem of long-distance shielded cable wiring.
- Mixed Analog and Digital Signal Compatible TransmissionThe module supports simultaneous transmission of all standard Tricon I/O signals including 4–20mA analog transmitter signals, 24VDC digital contact input signals and valve driving output signals. Through TriStation configuration software, users can independently set signal types, upper/lower limit thresholds and engineering unit conversion formulas for each remote channel, realizing unified collection and forwarding of pressure, temperature, liquid level analog variables and valve feedback, fire alarm digital signals. Built-in optical signal conditioning circuits compensate optical power attenuation generated by long-distance fiber transmission to ensure measurement accuracy consistent with local I/O modules.
- Full-Link Comprehensive Optical Channel Self-DiagnosisContinuous background diagnosis covers all transmission links: connection status of three-way redundant backplane buses, damage of internal optical transmitting/receiving chips, fiber cable breakage and bending loss, remote I/O rack power loss, signal over-range and under-range, optical port dust pollution and terminal block wiring looseness. All detected faults trigger the front panel red fault indicator alarm, and upload fault location, occurrence timestamp and detailed fault codes to the system monitoring platform. Single optical channel fault will not stop the overall signal extension function of the module, and all fault records can be exported for factory safety compliance audit.
- Multi-Layer Optical Isolation and Ultra-High Anti-Interference ProtectionFiber medium realizes complete electrical isolation between internal system circuits and each remote I/O rack, thoroughly limiting cross-transmission of abnormal energy between central control room and field hazardous areas, preventing lightning surges, static electricity and overvoltage from damaging core safety rack hardware. No ground loop interference exists in the whole transmission link, so complicated single-point grounding wiring of shielded cables is not required. Internal circuit partitioning separates analog signal transmission area and digital signal transmission area to avoid mutual crosstalk and signal distortion, adapting to offshore platforms and high-frequency electromagnetic interference workshops.
- Distributed Multi-Rack Centralized ManagementA single TRICONEX 4200 module can correspond to three groups of remote I/O racks, realizing centralized collection of scattered instrument signals distributed in different production zones. The module synchronizes all remote channel real-time data and fault information to the main processor, facilitating operators to view the running status of all remote field equipment on a unified central HMI without on-site inspection of each remote rack separately. It supports remote rack group partition fault alarm, quickly locating which remote cabinet has abnormal signals to improve maintenance efficiency.
- Deterministic Real-Time Data SynchronizationThe fixed 20ms signal refresh cycle ensures ultra-low delay transmission of emergency shutdown interlock signals. All data frames carry unified millisecond timestamps, meeting high-precision SOE sequence-of-event recording requirements for accident root cause analysis, even for remote equipment several kilometers away from the central control room.
6. Applicable Scenarios
- Large-Scale Petrochemical Refining ESD SystemsUsed for long-distance signal extension of scattered remote instrument cabinets in crude oil distillation, catalytic cracking and hydrogenation units with wide plant layout, realizing fiber transmission of reactor temperature, pipeline pressure analog signals and emergency valve feedback digital signals between central safety rack and field remote cabinets, supporting cross-area safety interlock logic execution.
- Offshore Oil & Gas Platform Fire and Gas Protection SystemsAdapted to offshore environments with high humidity, salt fog, vibration and strong electromagnetic interference, extending combustible gas detector analog signals and fire alarm contact digital signals from wellhead remote I/O racks to central control room Tricon safety rack, solving serious electromagnetic interference problems of long-distance deck cable wiring.
- Natural Gas Long-Distance Transmission Pipeline StationsServes dispersed valve group remote cabinets distributed several kilometers along gas transmission pipelines, extending pipeline pressure, flow analog signals and emergency cut-off valve position feedback digital signals to station central safety rack, realizing unified safety monitoring of multiple distributed pipeline valve zones.
- Thermal Power Plant Boiler and Auxiliary Machine Safety ControlApplied in power plants with scattered boiler auxiliary equipment far away from central control buildings, extending flue gas temperature, steam pressure analog signals and fan, pump fault feedback digital signals from remote auxiliary machine cabinets to central boiler SIS rack, supporting boiler overpressure and dry-burning emergency shutdown protection.
- Large-Scale Coal Chemical and Hazardous Waste Disposal PlantsSuitable for production plants with wide-area distributed incineration furnaces and storage tanks, extending scattered tank liquid level, furnace temperature analog signals and isolation door state digital signals from remote field cabinets to central safety rack, maintaining stable signal transmission under high-dust and slightly corrosive environments.
- Remote LNG Storage and Transportation Station Safety SystemsDeployed in Class I explosive hazardous area control rooms with intrinsically safe configuration, connecting multiple remote LNG tank area I/O racks through long-distance fiber cables, realizing centralized collection of tank pressure, liquid level safety signals and workshop emergency stop feedback signals, completely isolating flammable hazardous areas from central control circuits.
7. Operation and Maintenance Instructions
Installation Requirements
TRICONEX 4200 must only be installed in three consecutive dedicated remote extension slots of standard Tricon TMR safety I/O rack, inserted horizontally into the card slot, and front panel fastening screws must be fully locked to ensure reliable contact between the rear backplane gold finger connector and the rack bus. All remote transmission lines must adopt standard 62.5/125μm multi-mode fiber cables with ST connectors; fiber cables should avoid sharp bending and heavy extrusion during wiring to prevent optical power attenuation. The fiber port dust-proof covers must be installed when ports are not connected to fiber cables to avoid dust contamination of optical lenses. For intrinsically safe hazardous area remote rack matching, certified optical isolation safety barriers must be added between module front fiber ports and field remote racks, strictly complying with intrinsic safety circuit parameter matching specifications. A ventilation gap of at least 15 centimeters must be reserved around the rack card slot; high-power heat-generating modules cannot be stacked beside the 4200 module to avoid overheating exceeding the rated operating temperature and triggering optical circuit protection faults.
Daily Routine Inspection Standards
Conduct daily visual inspection to confirm that the PASS indicator light on the front panel of the module remains steady green, the FAULT alarm light is off, and three redundant optical channel running lights flash normally with fiber data transmission. Log in to TriStation configuration software or system central HMI every day to check all remote rack optical link status, and confirm that there are no records of fiber link loss, optical power attenuation, signal over-range or internal hardware faults. Every week, compare remote analog variable data transmitted by the module with local field instrument readings at remote racks to judge abnormal optical signal attenuation or transmission delay. Every month, clean the dust accumulated on the front panel fiber ports of the module and the ventilation slits of the rack, check the operating status of the cabinet cooling fan, and ensure that the ambient temperature around the module is maintained within the specified operating range of -40°C to +65°C. When cleaning optical ports, use professional fiber cleaning sticks only, and hard objects are forbidden to scratch optical lenses.
Regular Inspection and Calibration Cycle
Under standard indoor control room operating conditions, full optical channel signal test, optical power attenuation calibration and parameter verification shall be carried out every 12 months; for offshore platforms, coastal salt fog workshops and high-temperature chemical production areas, the inspection cycle is shortened to 6 months. Before inspection, back up all remote rack channel signal type configuration, range parameters and fault threshold data stored in the redundant memory of Tricon main processor. Use professional optical power meter and signal simulators to test each group of ST fiber transmit-receive ports one by one, verify signal receiving and forwarding accuracy, replace aging fiber cables if obvious optical power loss occurs. After completing all channel tests, save the updated configuration data to redundant system memory, and retain written inspection records including inspection date, operator name and fault test data for factory safety compliance audit.
Common Fault Handling Procedures
When a single group of optical channel link-loss alarm is triggered, first inspect whether the fiber cable is broken, the ST joint is loose or the optical lens is covered with dust, then check whether the corresponding remote rack power supply is cut off; eliminate external fiber wiring and remote rack power faults first before judging module hardware damage. If the global FAULT red light on the front panel is always on and all remote signal groups cannot transmit data, cut off the rack power supply first, then check the 24VDC power supply voltage of the rack and whether the backplane connector has dust accumulation, corrosion or poor contact. If the system diagnosis displays internal optical transmitting/receiving chip hardware failure of the module, planned shutdown maintenance must be arranged: cut off the whole rack power supply, unlock front fastening screws, steadily pull out the faulty module, insert a spare TRICONEX 4200 module of the same suffix version, lock the screws tightly, restore rack power supply, wait for the mainframe to complete automatic synchronization of remote signal parameters, then verify that all remote rack optical links return to normal transmission and clear the historical fault alarm logs. On-site disassembly of internal circuit components of the module is forbidden; damaged modules must be returned to official authorized service centers for repair or scrapping. Unauthorized disassembly will invalidate all SIL3 safety certifications of the hardware.
Spare Module Storage and Long-Term Service Management
Offline spare TRICONEX 4200 modules shall be stored in a constant temperature dry warehouse with ambient temperature maintained at 0°C to 40°C and relative humidity controlled below 70%. The modules must be sealed in original anti-static packaging bags, and all fiber port dust-proof covers must be installed to prevent dust from polluting internal optical lenses; avoid direct sunlight, corrosive gas and heavy dust accumulation environments. Every six months of shelf storage, take out the spare module for a 30-minute power-on aging test to activate internal circuit capacitors and prevent component performance degradation caused by long-term power-off state. The design service life of the module under rated normal operating conditions is 15 years; all 4200 modules installed on site shall be replaced in batches when reaching the service life to maintain the overall SIL3 safety integrity level of the entire SIS system.
Maintenance Safety Prohibitions
Unauthorized modification of internal optical transmission chips, independent firmware burning or hardware wiring transformation of TRICONEX 4200 is strictly prohibited. Any modification will void functional safety certification and related industrial safety qualification certificates. Do not connect fiber cables with excessive bending radius to front ST ports; long-term sharp bending will permanently damage internal optical transmission circuits. All maintenance operations involving module plugging, fiber cable replacement or channel parameter modification must be operated by certified SIS safety instrument maintenance personnel, and the whole rack power supply must be cut off before module disassembly. Safety isolation measures for production safety loops must be implemented before operation to avoid accidental triggering of emergency shutdown interlock logic during maintenance. Module disassembly and replacement is forbidden during critical production startup, shutdown or emergency accident handling stages; all module maintenance work must be arranged during planned equipment shutdown maintenance windows.
