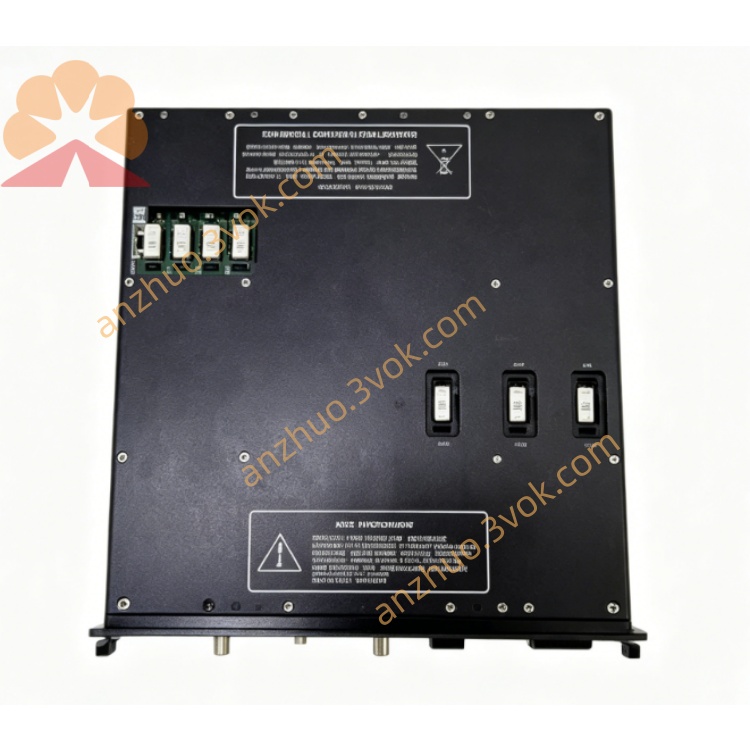

1. Product Introduction
TRICONEX 4329 is a classic NCM (Network Communication Module) built for the Tricon TMR triple modular redundant safety instrument system, developed under the Invensys Triconex brand, now part of Schneider Electric safety control hardware series. It acts as the dedicated Ethernet network gateway of the Tricon safety rack, realizing bidirectional high-reliability data exchange between Tricon main processors and external industrial automation systems. Adopting full triple redundant internal communication circuit architecture, it eliminates single-point communication failure risks in SIL3 safety loops.
This module complies with IEEE 802.3 10Mbps thin Ethernet standard, specially designed for safety critical industrial scenarios including emergency shutdown, fire and gas protection, and process interlock systems. It separates internal safety network and external open network through two independent Ethernet channels, supporting interconnection between multiple Tricon racks, DCS, central HMI, real-time historians and third-party monitoring platforms. Equipped with comprehensive circuit isolation, multi-layer fault diagnosis and online hot-swap capability, it can run continuously 24 hours a day in high electromagnetic interference, wide temperature, high vibration industrial environments, ensuring zero interruption of safety data transmission during module maintenance or single circuit failure.
2. Model Definition Explanation
The complete model code TRICONEX 4329 consists of brand identifier, core function coding and optional suffix variants:
Prefix TRICONEX: Brand mark, representing Tricon TMR safety control hardware product line, distinguished from general non-safety control modules of other series.
Four-digit core number 4329: Internal hardware classification code of Tricon rack modules. The first digit "4" represents network communication interface category; the middle two digits "32" mark thin coaxial Ethernet dedicated circuit layout; the last digit "9" stands for original base NCM version with integrated RS232 auxiliary serial port.
Optional suffix configuration codes after 4329:
No suffix: Standard base version with dual BNC thin Ethernet ports and one RS232 serial port, RG58 50-ohm coaxial cable matching.
4329G: Upgraded enhanced version with optimized bus communication chip, extended fault diagnosis log storage capacity.
-E: English firmware version, all front panel fault codes and diagnostic prompts displayed in English, matching international overseas project standards.
-IS: Intrinsically safe cabinet variant with reinforced port isolation barrier for Class I hazardous area cabinet installation.
3. Technical Specifications
Electrical Performance
The module draws 24VDC power supply from Tricon rack backplane, rated power consumption is controlled below 5W, applicable input voltage range 20VDC to 30VDC. Each external communication port supports 500VDC isolation withstand voltage between field network side and internal TMR circuit side, effectively blocking surge and static interference from external network cables. Two BNC Ethernet ports run fixed 10Mbps transmission speed, matching RG58 50-ohm thin coaxial cable transmission medium. Two 15-pin D-type external transceiver expansion ports are reserved for extended Ethernet signal conversion. The built-in RS232 auxiliary serial port supports adjustable baud rates from 1200bps to 19200bps for local parameter debugging and clock calibration. Internal three-way redundant communication bus realizes synchronous data transmission, full frame refresh cycle of all rack safety variables controlled within 25ms, with independent timestamp marking for each communication data frame.
Functional Safety & Reliability Index
Fully certified to IEC 61508 SIL 3 and IEC 61511 process safety standards, passed UL, CE, ATEX industrial safety certification. Internal three independent communication channels adopt two-out-of-three hardware voting logic; abnormal data generated by any single redundant circuit will be automatically filtered without triggering communication interruption or false safety interlock signals. Hardware MTTFS (Mean Time To Safe Failure) exceeds 300,000 hours; MTTR (Mean Time To Repair) is less than 10 minutes supported by hot-swap function. It has complete fault masking ability, single port short circuit, cable disconnection or single internal circuit damage cannot affect the overall communication operation of the module. All communication fault records are latched and stored in non-volatile memory for long-term audit traceability.
Environmental & Mechanical Parameters
Standard model operating ambient temperature range covers -40°C to +70°C; storage temperature range extends from -40°C to +85°C for spare part warehousing. Tolerable relative humidity 5% to 95% without condensation. Passes full industrial EMC anti-interference tests including electrostatic discharge, radiated radio frequency interference, surge impact and fast transient pulse interference. Adopts standard 6U VME rack card size, specially matched with Tricon series safety I/O chassis horizontal slot installation, no forced air cooling required under full rated load. Mechanical vibration resistance meets offshore oil platform, petrochemical plant and thermal power plant industrial standards, long-term low-frequency continuous vibration will not cause packet loss, signal distortion or communication link disconnection.
4. Interface and Communication Configuration
Hardware Interface Layout
Three types of independent hardware interfaces are integrated on the module, divided into backplane internal system interface and front external communication interfaces:
The rear edge dedicated gold finger connector is Tricon proprietary TMR backplane bus interface, responsible for redundant power supply acquisition, three-way isolated data interaction between module and three redundant main CPU boards, and real-time hardware fault signal uploading to the mainframe.
Front panel external interfaces include two BNC thin Ethernet connectors marked NET1 and NET2, two 15-pin D-sub external transceiver expansion ports, one RS232 serial terminal port, and multi-color LED status indicator lights. Each BNC port is equipped with independent shielding grounding terminals for coaxial cable shielding layer single-point grounding; the RS232 serial port carries built-in overvoltage protection circuit. Front panel indicator lights separately display module overall pass state, global hardware fault alarm, each Ethernet port transmit and receive signal activity status, convenient for on-site quick visual inspection.
Internal Backplane Communication Mechanism
Data interaction between TRICONEX 4329 and Tricon triple redundant main processors relies on three completely isolated proprietary high-speed backplane buses, corresponding one-to-one with three internal communication circuits of the module. Each redundant bus independently transmits safety interlock logic state, real-time process variables, channel fault diagnosis codes and system clock information from each CPU to the 4329 module. The module executes hardware two-out-of-three voting on three groups of synchronous data before forwarding to external networks to eliminate data inconsistency caused by single CPU deviation. All backplane link disconnection, communication timeout and data parity error faults will trigger front panel fault lights and upload detailed fault codes to system configuration software.
External Network Protocol Support and Port Division
Two independent Ethernet channels realize physical isolation between safety dedicated network and open external network to avoid external network risk intrusion into safety loops:
NET1 port is dedicated safety network channel, only supports peer-to-peer interconnection between multiple Tricon racks and system time synchronization functions, runs Tricon exclusive TSAA safety transmission protocol, used for data interaction among distributed safety control cabinets in the same plant area.
NET2 port is open external network channel, supports bidirectional data exchange with external third-party systems, compatible with TSAA proprietary protocol, Modbus TCP, standard TCP/IP, OPC DA and DDE communication protocols, realizing docking with DCS operation station, central HMI, real-time data historians and remote monitoring SCADA systems.
The auxiliary RS232 serial port is only used for local offline debugging, module clock calibration and firmware upgrade, not for long-term on-site production data transmission. All communication parameter configuration, network IP address allocation and signal point mapping tables are downloaded and stored in the redundant memory of Tricon main processors, automatically synchronized to the 4329 module after power-on or hot swap replacement.
5. Core Functions
Dual Isolated Network Channel Safety Data Forwarding
NET1 and NET2 physically separated dual Ethernet design completely isolate internal safety control network and external open monitoring network, preventing network virus, abnormal external signal and network surge from invading safety logic circuits. Three internal redundant communication circuits operate synchronously to receive safety data from main processors, filter abnormal data through two-out-of-three voting, and transmit verified valid data to corresponding external network equipment via designated ports. Single port cable breakage or external equipment offline only affects the corresponding channel, the other network channel maintains full-capacity data transmission without safety signal loss. Downlink remote control commands issued by external systems also pass three-way redundant receiving and voting before being delivered to SIS safety logic, avoiding false emergency shutdown triggered by abnormal external network signals.
Multi-Rack Safety Network Interconnection and Time Synchronization
NET1 dedicated safety port supports peer-to-peer communication between multiple Tricon safety racks, realizing data sharing of inter-unit safety interlock signals across different production devices. Integrated IEEE standard time synchronization function, can serve as time master node to send unified clock signals to all connected Tricon cabinets, ensuring millisecond-level synchronous timestamp for all safety variable collection and fault event recording, meeting SOE sequence of event recording accuracy requirements of process safety systems.
Full-Link Communication Comprehensive Self-Diagnosis
Continuous background diagnosis covers all communication links: backplane three-way redundant bus connection state, internal communication chip hardware damage, BNC coaxial cable open circuit and short circuit, external transceiver port failure, RS232 serial port signal abnormality, network port overvoltage protection circuit breakdown, external network equipment offline and communication frame parity error. All detected faults trigger front panel red fault indicator alarm, and upload fault location, fault occurrence timestamp and detailed fault code to TriStation configuration software and central HMI. Single channel or single port fault will not shut down the overall communication function of the module, and fault records can be exported for safety compliance audit.
Online Hot-Swap Maintenance Without System Shutdown
The module supports non-stop online plugging and replacement without cutting off the power supply of the entire safety rack. When pulling out a faulty 4329 module, the three redundant communication bus architecture of the rack ensures safety data transmission of the whole system is not interrupted. After inserting a spare module of the same model and locking front fastening screws, the Tricon mainframe automatically completes hardware identification, redundant channel synchronization, network parameter copying and protocol configuration synchronization within 30 seconds; all Ethernet communication links resume normal transmission without manual reconfiguration, eliminating production downtime caused by communication module maintenance.
Multi-Protocol Conversion and Safety Signal Priority Scheduling
Through TriStation system configuration software, users can freely configure bidirectional signal mapping tables between internal SIS safety variables and external system communication addresses, supporting one-to-many and many-to-one data mapping, automatically completing format conversion between different industrial communication protocols without additional external protocol converters. Internal built-in data priority scheduling mechanism: emergency shutdown interlock signals, fire and gas alarm signals are assigned the highest transmission priority to guarantee ultra-low delay delivery; conventional real-time monitoring data and historical trend data are transmitted with lower priority to avoid occupying bandwidth of critical safety signals.
Network Safety Isolation and Anti-Interference Protection
500VDC isolation barrier is installed between all external communication ports and internal TMR safety circuits, limiting abnormal energy cross-transmission between external network and safety control hardware, preventing lightning surge, static electricity and overvoltage from damaging core safety circuits. Each BNC coaxial port is equipped with independent lightning protection circuit, matching shielded coaxial cable single-point grounding specification to suppress factory cable channel electromagnetic interference. Internal circuit partition separates safety critical signal transmission area and non-critical monitoring data area to avoid mutual bandwidth occupation and signal interference.
6. Applicable Scenarios
Petrochemical Refinery ESD Emergency Shutdown Systems
Used as network communication gateway for crude oil distillation, catalytic cracking, hydrogenation and delayed coking unit safety racks, realizing interconnection between multiple Tricon safety cabinets and refinery central DCS, transmitting furnace overtemperature, pipeline overpressure, tank overflow emergency interlock signals to central control room monitoring stations, and supporting cross-unit interlock signal sharing between different production devices.
Offshore Oil & Gas Platform Fire and Gas Protection Systems
Adapted to offshore high humidity, salt fog, vibration and strong electromagnetic interference environments, responsible for network data transmission of wellhead safety instrument racks, platform fire detection and combustible gas monitoring systems, connecting local SIS racks with offshore central monitoring system and onshore remote dispatching platform through dual Ethernet channels.
Natural Gas Transmission Pipelines and Compressor Stations
Serves pipeline overpressure protection and compressor unit safety interlock systems, realizing bidirectional communication between station Tricon safety rack and regional dispatching SCADA system, uploading pipeline pressure, flow, temperature safety variables and compressor fault alarms, receiving remote emergency cut-off valve shutdown instructions issued by upper dispatching center.
Thermal Power and Gas Power Plant Boiler Protection Systems
Realizes network docking between boiler drum water level, steam pressure, flue gas temperature SIS safety control racks and power plant DCS, transmitting boiler dry-burning, overtemperature and overpressure pre-alarm and emergency shutdown signals, supporting unified time synchronization of all boiler safety equipment for accident event sequence analysis.
Fine Chemical and Pharmaceutical Explosive Hazardous Workshops
Deployed in Class I explosive hazardous area control cabinets with intrinsically safe configuration, undertaking network communication of reactor temperature and pressure, toxic solvent concentration safety interlock signals between workshop local safety racks and factory central control HMI, physical isolation of safety network and factory office network to avoid safety loop risks brought by office network access.
Coal Chemical and Hazardous Waste Incineration Plants
Undertakes multi-rack interconnection and external system communication of incinerator safety protection systems in high-corrosion, high-dust production environments, ensuring stable real-time transmission of furnace temperature, flue gas harmful substance concentration and emergency isolation door state signals, supporting long-term continuous operation under harsh industrial conditions.
7. Operation and Maintenance Instructions
Installation Requirements
TRICONEX 4329 must only be installed in dedicated network communication slots of standard Tricon TMR safety I/O rack, inserted horizontally into the card slot, and front panel fastening screws fully locked to ensure reliable contact between rear backplane gold finger connector and rack bus. NET1 and NET2 Ethernet ports must use standard RG58 50-ohm thin coaxial cables; cable shielding layers must be single-point grounded at control room cabinet ground bar, multi-point grounding on field equipment side is strictly prohibited to prevent ground loop induced interference. RS232 serial port wiring uses shielded twisted-pair cable for local debugging only, long-distance production data transmission via serial port is forbidden. For intrinsically safe hazardous area cabinet installation, certified safety isolation barriers must be added between module external communication ports and field network equipment, strictly complying with intrinsic safety circuit parameter matching specifications. Maintain at least 15cm ventilation gap around the rack card slot, do not stack high-power heat-generating modules beside the 4329 module to avoid overheating exceeding rated operating temperature and triggering communication circuit protection faults.
Daily Routine Inspection Standards
Daily visual inspection to confirm module front PASS indicator light keeps steady green, FAULT alarm light remains off, TX and RX signal lights of two BNC ports flash normally with data transmission. Log in TriStation configuration software or system central HMI every day to check network link status, confirm no communication timeout, packet loss, port disconnection or internal hardware fault records exist. Weekly compare safety variable data transmitted by NET2 port with DCS real-time display values to judge network transmission delay or signal distortion anomalies. Monthly clean dust accumulated on module front panel ports and rack ventilation slits, check cabinet cooling fan running state, ensure ambient temperature around the module stays within -40°C to +70°C specified operating range.
Regular Inspection and Calibration Cycle
Under standard indoor control room operating conditions, full communication port function test, network parameter verification and clock synchronization calibration shall be conducted every 12 months; the inspection cycle is shortened to 6 months for offshore platforms, coastal salt fog workshops and high-temperature chemical production areas. Before inspection, back up all network IP configurations, signal mapping tables and protocol parameters stored in Tricon main processor redundant memory. Use professional network signal tester to inject test signals into NET1, NET2 and RS232 ports one by one, verify data receiving and forwarding accuracy, adjust network timeout threshold and signal filtering parameters in configuration software if packet loss or communication delay occurs. After completing all port tests, save updated configuration data to redundant system memory, and retain written inspection records including inspection date, operator name and fault test data for factory safety compliance audit.
Common Fault Handling Procedures
When single port TX/RX indicator light stops flashing and communication interruption alarm triggers, first inspect coaxial cable for breakage, loose BNC joint or shielding layer damage, then check whether the connected external network equipment is powered off or faulty; eliminate external wiring and equipment faults first before judging module hardware damage. If the front panel global FAULT red light is always on and both Ethernet channels cannot transmit data, inspect rack 24VDC power supply voltage and backplane connector for dust accumulation, corrosion or poor contact. System diagnosis displaying module internal communication chip hardware failure allows direct hot-swap maintenance: unlock front fastening screws, steadily pull out the faulty module, insert a spare TRICONEX 4329 module of the same suffix version, lock the screws tightly, wait for automatic network parameter synchronization completion, then verify all Ethernet communication links resume normal transmission and clear historical fault alarm logs. On-site disassembly of module internal circuit components is forbidden; damaged modules must be returned to official authorized service centers for repair or scrapping, unauthorized disassembly will invalidate all SIL3 safety certifications of the hardware.
Spare Module Storage and Long-Term Service Management
Offline spare TRICONEX 4329 modules shall be stored in constant temperature dry warehouses with ambient temperature maintained at 0°C to 40°C and relative humidity controlled below 70%. Modules must be sealed in original anti-static packaging bags to prevent static electricity damage to internal communication chips, avoid direct sunlight, corrosive gas and heavy dust accumulation environments. Every six months of shelf storage, take out spare modules for 30 minutes power-on aging test to activate internal circuit capacitors and prevent component performance degradation caused by long-term power-off state. The design service life of the module under rated normal operating conditions is 15 years; all on-site installed 4329 modules shall be replaced in batches upon reaching service life to maintain the overall SIL3 safety integrity level of the entire SIS system.
Maintenance Safety Prohibitions
Unauthorized modification of internal circuit chips, firmware independent burning or hardware wiring transformation of TRICONEX 4329 is strictly prohibited, any modification will void functional safety certification and related industrial safety qualification certificates. Do not connect network cables carrying overvoltage exceeding 500VDC isolation withstand voltage to external BNC and serial ports, excessive voltage will permanently burn internal communication isolation circuits and triple redundant bus interface. All maintenance operations involving module plugging, network cable replacement or communication parameter modification must be operated by certified SIS safety instrument maintenance personnel, and safety isolation measures for production safety loops shall be implemented before operation to avoid accidental triggering of emergency shutdown interlock logic during maintenance. Hot-swap replacement of the module is forbidden during critical production startup, shutdown or emergency accident handling stages; all module maintenance work must be arranged during planned equipment shutdown maintenance windows.
