TRICONEX 4400 dedicated redundant communication interface module
May 18, 2026

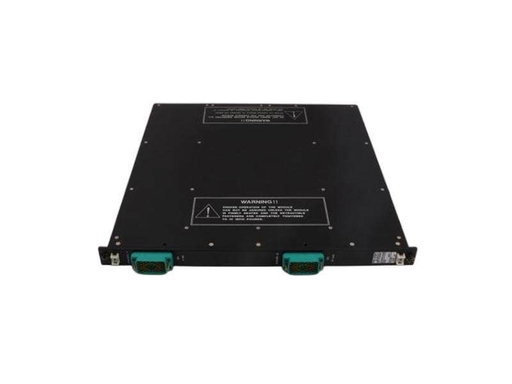

TRICONEX 4400 dedicated redundant communication interface module

TRICONEX 4400 is a dedicated redundant communication interface module belonging to the Tricon triple modular redundant safety instrument system series, developed by Triconex under Schneider Electric. It serves as the core data bridge between Tricon SIS main processors and external industrial automation platforms, built entirely on TMR triple redundant hardware architecture to eliminate single-point communication failure risks in safety loops. This module is exclusively designed for SIL 3 critical process safety scenarios, undertaking bidirectional transmission of safety interlock signals, real-time process variable data, equipment fault diagnosis codes and historical alarm records. It integrates multi-protocol conversion, redundant data forwarding and communication circuit self-test functions, supporting seamless docking with DCS, HMI, SCADA, fire and gas monitoring systems, and third-party historians. With full industrial isolation, anti-electromagnetic interference and hot-swap design, it can run continuously 24/7 in high-vibration, wide-temperature hazardous production areas, guaranteeing zero interruption of safety data interaction during module maintenance or partial circuit faults.

Description

1. Product Introduction

TRICONEX 4400 is a dedicated redundant communication interface module belonging to the Tricon triple modular redundant safety instrument system series, developed by Triconex under Schneider Electric. It serves as the core data bridge between Tricon SIS main processors and external industrial automation platforms, built entirely on TMR triple redundant hardware architecture to eliminate single-point communication failure risks in safety loops.
This module is exclusively designed for SIL 3 critical process safety scenarios, undertaking bidirectional transmission of safety interlock signals, real-time process variable data, equipment fault diagnosis codes and historical alarm records. It integrates multi-protocol conversion, redundant data forwarding and communication circuit self-test functions, supporting seamless docking with DCS, HMI, SCADA, fire and gas monitoring systems, and third-party historians. With full industrial isolation, anti-electromagnetic interference and hot-swap design, it can run continuously 24/7 in high-vibration, wide-temperature hazardous production areas, guaranteeing zero interruption of safety data interaction during module maintenance or partial circuit faults.

2. Model Definition Explanation

The complete identifier TRICONEX 4400 consists of brand prefix, core series code and optional function suffixes:

  1. Prefix TRICONEX: Brand identity, representing Tricon TMR safety control product line, distinguished from general non-safety control hardware of other series.

  2. Four-digit core code 4400: Internal hardware classification coding of Tricon rack modules. The first digit "4" stands for system communication interface functional category; the middle two digits "40" mark redundant multi-channel protocol conversion hardware layout; the last digit "0" indicates the base universal communication version without built-in dedicated protocol chips.

  3. Optional suffix coding for differentiated configurations attached after 4400:

  • No suffix: Standard universal communication version, supporting Modbus serial and basic Ethernet TCP transmission.

  • -E: Full English firmware and English diagnostic panel display, matching international project standard configurations.

  • -ETH: Enhanced Ethernet version with dual redundant RJ45 communication lanes.

  • -IS: Intrinsically safe communication variant for Class I hazardous zone cabinet installation.

  • -OPC: Special version optimized for OPC DA/UA upper computer data interaction.

3. Technical Specifications

Electrical Performance

The module adopts internal 24VDC backplane power supply from Tricon chassis, with rated operating power consumption lower than 18W. Internal communication circuits feature 2500VAC isolation withstand voltage between three redundant communication channels, and 1500VAC isolation between backplane system side and external field communication wiring terminals. Serial communication ports support adjustable baud rates from 1200bps to 19200bps; Ethernet interface operates at fixed 10/100Mbps adaptive speed. Built-in AES-256 data encryption algorithm for safety signal transmission to prevent data tampering during transmission. Single communication channel maximum data throughput reaches 500 process variables per second, full redundant dual-channel synchronous refresh cycle controlled within 20ms.

Functional Safety & Reliability Index

Fully compliant with IEC 61508 SIL 3 and IEC 61511 process safety standards, certified by ATEX, IECEx, UL and CE industrial safety certifications. The triple redundant communication circuit implements two-out-of-three data voting mechanism; abnormal data from any single redundant channel will be automatically discarded without affecting overall communication. MTTFS (Mean Time To Safe Failure) exceeds 280,000 hours; MTTR (Mean Time To Repair) is less than 10 minutes relying on hot-swap function. Hardware fault masking capability ensures single communication channel damage cannot trigger safety interlock misoperation or data loss. All communication frames carry independent time stamps to guarantee data synchronization consistency between SIS and external systems.

Environmental & Mechanical Parameters

Standard model operating temperature range covers -20°C to +65°C; high-temperature extended variant supports -40°C to +70°C. Storage temperature spans -40°C to +85°C, applicable for long-term spare module warehousing. Tolerable relative humidity ranges from 5% to 95% without condensation. Passes full EMC industrial anti-interference tests including electrostatic discharge, radiated radio frequency interference, surge impact and fast transient pulse interference. Designed for standard 19-inch Tricon rack horizontal card slot installation, no forced air cooling required under full load. Mechanical vibration resistance meets offshore oil platform and chemical plant standards, capable of long-term stable operation under low-frequency continuous vibration without communication packet loss or signal distortion.

4. Interface and Communication Configuration

Hardware Interface Layout

Two independent layered hardware interfaces are integrated on the module: backplane internal system interface and front external communication terminal interface.
The rear edge dedicated connector is the Tricon proprietary TMR backplane interface, responsible for redundant power supply acquisition, three-way independent data transmission between module and main CPU boards, and real-time hardware fault signal uploading.
The front panel contains two types of external wiring interfaces: screw-type terminal blocks for RS485 serial communication and dual RJ45 Ethernet ports for network communication. Each serial channel is equipped with independent shielding grounding terminals; Ethernet ports carry built-in lightning protection circuits. All external communication wiring adopts shielded twisted-pair cables, single-point grounding at control room cabinet side is mandatory to avoid ground loop interference. Front panel embedded multi-color LED diagnostic indicators separately display power status, three redundant channel running status, communication link alarm and hardware fault codes.

Internal Backplane Communication Mechanism

Data interaction between TRICONEX 4400 and Tricon main controller relies on three completely isolated redundant proprietary backplane buses, corresponding one-to-one with the module’s three internal communication circuits. Each redundant bus independently transmits process data, safety logic state and channel diagnostic information to three redundant CPU boards. The module synchronizes data from three CPUs through hardware voting before forwarding to external systems, eliminating data inconsistency risks caused by single CPU deviation. All communication faults of backplane links will generate latched alarm information and be recorded in the system fault memory for later maintenance query.

External Supported Communication Protocols

The module realizes multi-protocol conversion and bidirectional data exchange with upper and lower industrial equipment, covering mainstream industrial communication standards:
Serial protocols include Modbus RTU, Modbus ASCII, custom Tricon safety serial protocol; Ethernet protocols support Modbus TCP, TCP/IP, OPC DA, OPC UA, and proprietary Tricon safety network communication protocol. It can simultaneously carry out multi-protocol parallel transmission, separating safety interlock signal channels and conventional monitoring data channels through internal circuit isolation to avoid signal mutual interference. The module itself does not store external system configuration; all communication point tables, protocol parameters and signal mapping relations are downloaded and stored in the main controller redundant memory, and automatically synchronized to the 4400 module after power-on or hot swap replacement.

5. Core Functions

  1. Triple Redundant Safety Data Forwarding
    Three independent communication circuits operate synchronously to receive safety loop data from the Tricon mainframe, execute two-out-of-three voting filtering, and transmit verified valid data to external DCS, HMI and monitoring platforms. If one communication channel fails, the remaining two redundant channels maintain full-capacity data transmission without frame loss or delay. Downlink control commands issued by external systems also pass through three-way redundant receiving and voting before being delivered to SIS safety logic to prevent false interlock triggering caused by abnormal external signals.
  2. Multi-Protocol Automatic Conversion and Signal Mapping
    Through Tricon system configuration software, users can freely configure signal mapping tables between SIS internal safety variables and external system communication addresses, supporting one-to-many and many-to-one data mapping. The module automatically completes format conversion between different communication protocols without additional protocol conversion equipment, realizing seamless interconnection between different brand control systems. Independent data transmission priority configuration is available: emergency shutdown interlock signals are assigned the highest transmission priority to ensure ultra-low delay delivery.
  3. Full-Link Communication Self-Diagnosis and Fault Alarm
    Continuous background diagnosis covers all links of the communication path: backplane bus connection state, internal redundant circuit damage, serial/Ethernet line open circuit and short circuit, external communication equipment offline, signal overvoltage and lightning protection circuit breakdown. All detected faults trigger front panel indicator alarms and upload fault codes, fault occurrence time and fault location information to the system HMI. Fault records can be permanently stored in the main controller for safety audit traceability, and single-channel faults will not shut down the entire communication function.
  4. Online Hot-Swap Replacement Support
    The module supports non-stop online plugging and replacement without cutting off the entire SIS rack power supply. When removing a faulty 4400 unit, the other two redundant communication circuits continue to maintain normal data transmission. After inserting a new spare module of the same model, the system automatically completes hardware identification, redundant channel synchronization and communication parameter copying within 30 seconds; communication resumes full normal state without manual reconfiguration, eliminating production downtime caused by communication module maintenance.
  5. Safety Data Isolation and Anti-Interference Protection
    Complete electrical isolation is implemented between internal safety system circuits and external plant communication networks. Isolation barriers limit energy cross-transmission between the two sides, preventing external network surge, static electricity or abnormal voltage from damaging SIS core control hardware. Independent lightning protection circuits are installed on all external communication ports to resist lightning surge interference in factory cable channels. The module distinguishes safety critical signal channels and non-critical monitoring channels through internal circuit partitioning to avoid ordinary data flow occupying transmission resources of emergency interlock signals.
  6. Historical Alarm and Fault Data Transmitting
    The module synchronizes real-time safety alarm records, equipment fault information and process variable over-limit events generated by the SIS mainframe, and forwards complete historical data to off-site historians or central monitoring rooms through redundant communication links. It supports timed batch uploading of historical data and real-time alarm push modes, with data integrity verification function to ensure no missing or distorted alarm records during transmission.

6. Applicable Scenarios

  1. Petrochemical Refining Safety Instrumented Systems
    Used as communication gateway for crude oil distillation, catalytic cracking and hydrogenation unit ESD emergency shutdown systems, realizing bidirectional data exchange between SIS safety control racks and refinery DCS platforms, transmitting furnace overtemperature, pipeline overpressure and tank overflow interlock signals to central control room monitoring screens.
  2. Offshore Oil & Gas Platform Fire and Gas Protection Systems
    Adapted to high humidity, salt fog and vibration offshore environments, connecting wellhead gas detection equipment, platform emergency cut-off valves and offshore central monitoring systems, supporting redundant communication of flammable gas concentration, fire alarm and safety isolation valve state signals.
  3. Natural Gas Transmission Pipelines and Compressor Stations
    Serves pipeline overpressure protection and compressor unit safety interlock systems, transmitting pipeline flow, pressure and temperature safety variables to regional dispatching SCADA systems, and receiving remote emergency cut-off commands issued by upper dispatching platforms.
  4. Thermal Power and Gas Power Plant Boiler Protection Systems
    Realizes communication docking between boiler drum water level, steam pressure and flue gas temperature SIS safety monitoring racks and power plant DCS, uploading boiler dry-burning, overtemperature and overpressure pre-alarm signals, and receiving remote boiler emergency shutdown instructions.
  5. Fine Chemical and Pharmaceutical Hazardous Workshop
    Applied in Class I explosive hazardous production zones, matched with intrinsically safe wiring configurations, responsible for communication transmission of toxic solvent concentration, reactor temperature and pressure safety interlock signals between workshop local SIS and factory central control HMI.
  6. Coal Chemical and Hazardous Waste Disposal Plants
    Undertakes data interaction between hazardous waste incineration furnace safety protection systems and factory centralized monitoring platforms, ensuring stable transmission of furnace temperature, flue gas harmful substance concentration and emergency isolation door state signals under harsh corrosive environments.

7. Operation and Maintenance Instructions

Installation Requirements

TRICONEX 4400 must only be installed in a standard Tricon TMR safety I/O rack, inserted horizontally into dedicated communication card slots, with front panel fastening screws fully locked to guarantee reliable contact between backplane connectors. All external serial and Ethernet communication cables must adopt double-shielded twisted-pair industrial cables; cable shielding layers can only be grounded at the control room cabinet ground bar, multi-point grounding on field equipment side is strictly prohibited to prevent ground loop induced interference. For intrinsically safe hazardous area cabinet installation, certified isolation safety barriers must be added between module communication terminals and field external equipment, strictly complying with intrinsic safety circuit parameter matching specifications. Maintain at least 15cm ventilation gap around the rack card slots, do not stack heat-generating power modules or relays beside the 4400 module to avoid exceeding rated operating temperature and triggering communication circuit overheating faults.

Daily Routine Inspection Standards

Daily visual inspection to confirm no red fault alarm indicators light up on the module front panel, green running indicators of three redundant channels remain normally illuminated. Log in to the system HMI or Tricon configuration software every day to check communication link status, confirm no offline, packet loss or channel fault records exist. Weekly compare data values transmitted by the module with local field instrument readings to judge communication signal drift or transmission delay anomalies. Monthly clean dust accumulated on rack ventilation slits and module front panel wiring ports, check cabinet cooling fan operating state, ensure the ambient temperature around the module stays within the specified operating range.

Regular Calibration and Inspection Cycle

Under standard factory indoor operating conditions, full communication channel function test and parameter verification shall be conducted every 12 months; the inspection cycle is shortened to 6 months for offshore platforms, high-temperature chemical workshops and coastal salt fog environments. Before inspection, back up all communication mapping tables and protocol configuration parameters stored in the main controller. Use standard communication signal simulators to inject test signals into each serial and Ethernet channel one by one, verify data receiving and forwarding accuracy, adjust communication baud rate, timeout threshold and signal filtering parameters in configuration software if packet loss or delay occurs. After completing all channel tests, save updated configuration data to redundant system memory and retain written inspection records including inspection date, operator name and fault test data for safety compliance audit.

Common Fault Handling Procedures

When a single communication channel alarm lights up on the front panel, first check external communication cables for breakage, short circuit or loose terminal wiring, then verify whether the connected external equipment is powered off or faulty; eliminate external equipment faults first before judging module hardware damage. If all three redundant channels trigger simultaneous communication alarms, inspect the Tricon rack 24VDC power supply voltage and backplane connector for dust accumulation or corrosion. System diagnosis displaying module internal hardware failure allows direct hot-swap maintenance: unlock front fastening screws, steadily pull out the faulty module, insert a spare TRICONEX 4400 module with the same suffix configuration, lock the screws tightly, wait for automatic redundant synchronization completion, then verify all communication channels resume normal transmission and clear historical fault alarm logs. On-site disassembly of module internal circuits is forbidden; damaged modules must be returned to official authorized service centers for repair or scrapping, unauthorized disassembly will invalidate all SIL safety certifications of the hardware.

Spare Module Storage and Long-Term Service Management

Offline spare TRICONEX 4400 modules shall be stored in constant temperature dry warehouses with ambient temperature maintained at 0°C to 40°C and relative humidity controlled below 70%. Modules must be sealed in original anti-static packaging bags to prevent static electricity damage to internal communication chips, avoid direct sunlight, corrosive gas and dust accumulation environments. Every six months of shelf storage, take out spare modules for 30 minutes power-on aging test to activate internal circuit capacitors and prevent component aging caused by long-term power-off. The design service life of the module under rated operating conditions is 15 years; all on-site installed 4400 modules shall be replaced in batches upon reaching service life to maintain the overall SIL 3 safety integrity level of the SIS system.

Maintenance Safety Prohibitions

Unauthorized modification of internal circuit components, firmware burning or hardware circuit wiring of TRICONEX 4400 is prohibited, any modification will void functional safety certification. Do not connect communication cables carrying overvoltage exceeding module rated withstand voltage to external ports, excessive voltage will permanently burn internal communication isolation circuits. All maintenance operations involving module plugging, wiring replacement or communication parameter modification must be operated by certified SIS maintenance personnel, and safety isolation measures for production process loops shall be implemented before operation to avoid accidental triggering of safety interlock logic during maintenance. It is forbidden to perform hot-swap replacement during critical production startup, shutdown or emergency accident handling stages; maintenance shall be arranged during planned equipment shutdown windows.
