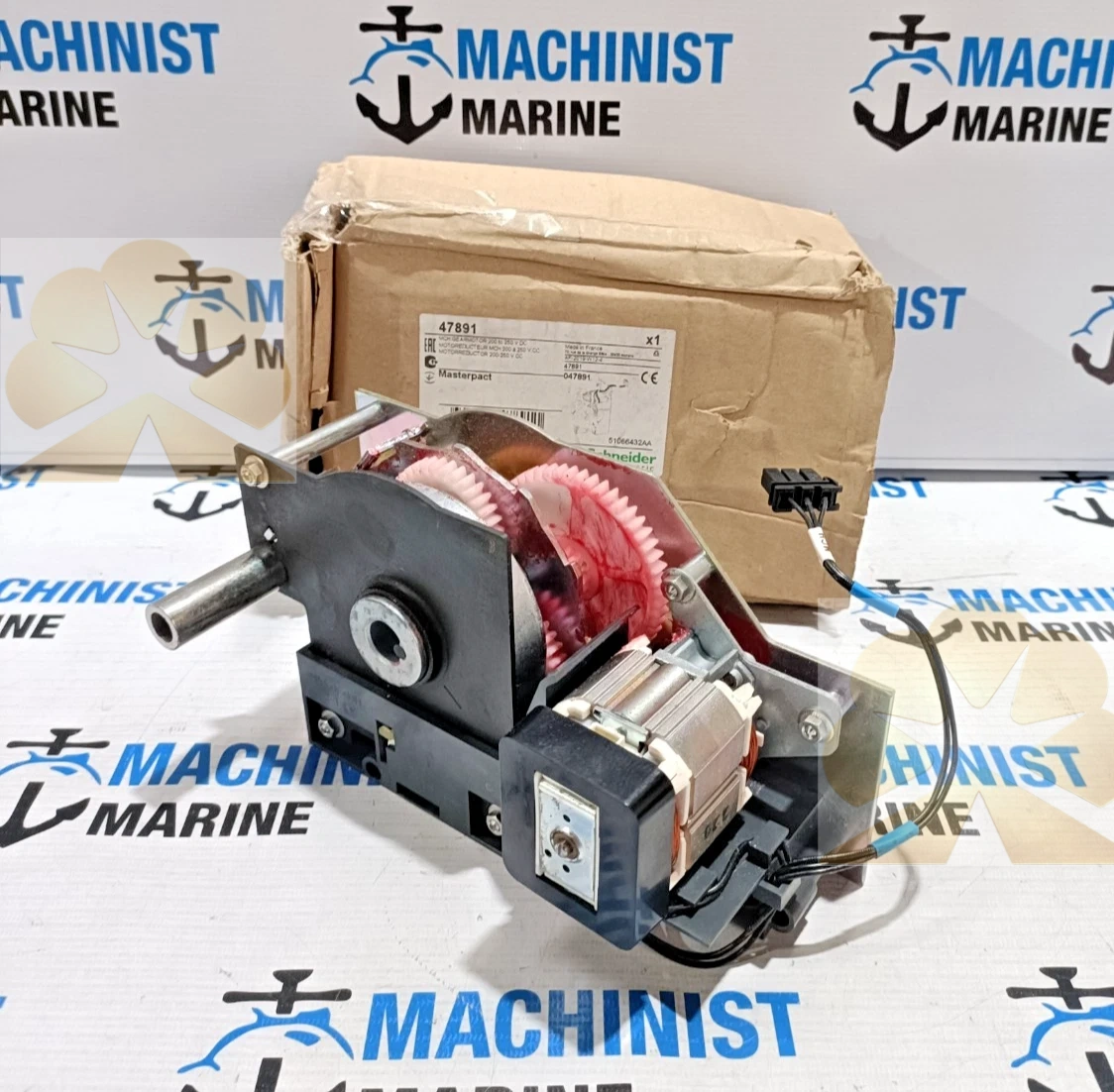

SCHNEIDER ELECTRIC 47891 MCH MOTOR OPERATING MECHANISM 200-250VDC
SCHNEIDER ELECTRIC 47891 is frame fitted marine MCH spring charging gear motor assembly, designed for Schneider MasterPact NW series air circuit breaker, widely fitted onboard cargo vessels, offshore platforms and heavy-lift ships for automatic spring charging of main air breaker closing mechanism. This marine motor mechanism accepts 200‑250VDC power supply and mechanically charges the closing spring, enabling remote electrical closing operation of the MasterPact NW air circuit breaker for vessel main low voltage power distribution control.

The marine MCH drive assembly integrates built-in thermal cut-out protection, mechanical limit position switches, surge suppression circuit and status feedback contacts, supports automatic spring charging control, fault memory storage and mechanical safety interlock function complying with marine classification society main switchboard requirements. Its spring charging drive & hardware diagnostics function continuously monitors DC supply voltage, motor winding integrity and mechanical linkage state, detects motor overload, winding burnout and mechanical jamming fault, transmits operating mechanism fault alerts and breaker spring charge status to vessel AMS alarm console. The spring charging drive & hardware diagnostics ensures reliable remote spring charging and electric closing control for Schneider MasterPact NW marine air circuit breaker system. It enables reliable marine 47891 MCH motor mechanism operation under heavy vessel vibration and salt mist marine environments.

This Schneider 47891 motorized operating mechanism delivers stable marine breaker spring charging performance mounted directly onto MasterPact NW air circuit breaker frame. The spring charging drive & hardware diagnostics adopts marine-grade metal gear housing with EMC shielding against electromagnetic interference and mechanical shock. Marine electrical technicians rely on marine 47891 mechanism operation to test motor charging stroke, verify limit switch feedback and inspect mechanical transmission during routine maintenance. It adopts standard frame mounting design for straightforward spare replacement and minimal marine main power distribution system downtime. Internal motor, gear and switch components use anti-corrosion treatment to protect against salt mist, condensation and temperature fluctuation. It works cooperatively with MasterPact NW air circuit breaker, control cables and ship integrated alarm monitoring system. It is widely used as motorized spare hardware for Schneider marine vessel low voltage main air circuit breaker power distribution control system maintenance and retrofit projects.
