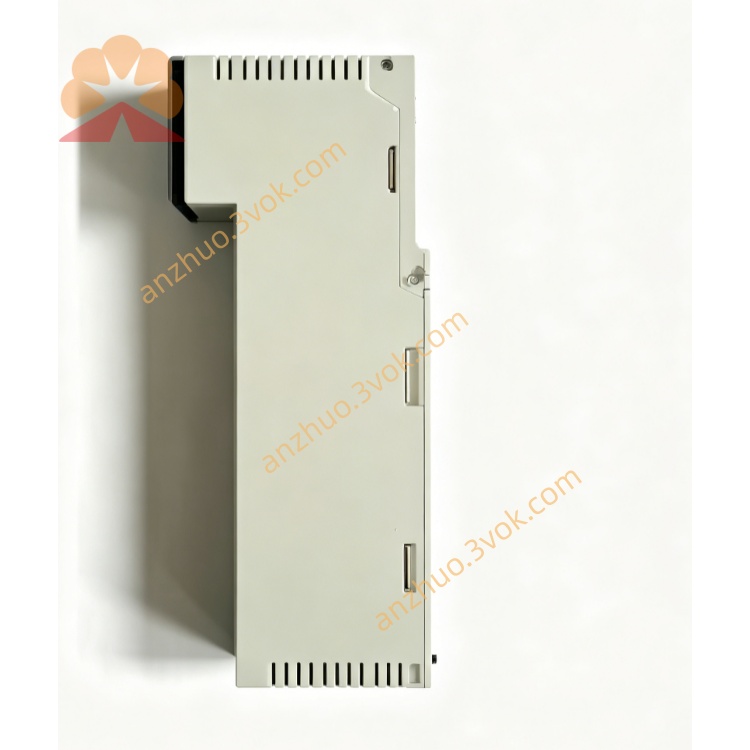

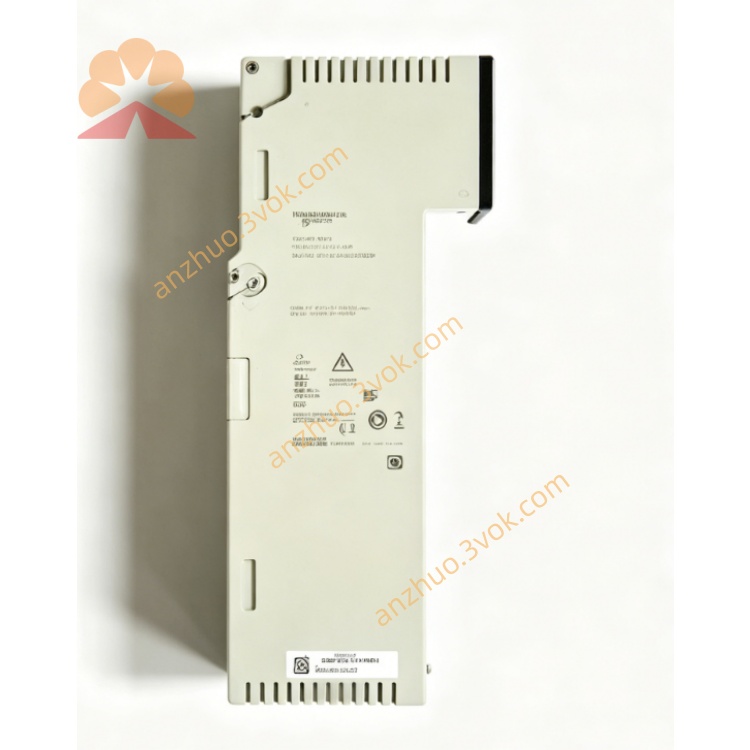

140AC013000

Modicon Quantum Analog Output Module

General Information

Product Description

Main Technical Specifications

1. Channel Quantity: 8 independent analog output channels

2. Resolution: 12 bits

3. Signal Output Range (software configurable)

   • 0~20mA

   • 0~25mA

   • 4~20mA

4. Response Time: 5ms maximum update time

5. Settling Time: 3.2ms reach ±0.1% full scale value

6. Basic Accuracy: ±0.2% full scale at 25℃

7. Temperature Drift: Typical 0.004% FS/℃, maximum 0.007% FS/℃

8. Isolation Voltage: 1780V AC one-minute withstand voltage between channel and backplane bus

9. External Power Supply: 6VDC ~ 30VDC

10. Module Power Consumption: 5W

11. Backplane Bus Current Consumption: 550mA

Protection & Diagnosis Function

1. Each channel supports short circuit protection

2. Open circuit fault detection function under 4-20mA mode

3. Module running status and fault status LED indication

Environmental Parameters

1. Operating Temperature: 0℃ ~ +60℃

2. Storage Temperature: -40℃ ~ +85℃

3. Relative Humidity: 5%~95%, non-condensing

4. Working Altitude: Below 5000 meters

Certification Standard

Typical Applications

Compatibility
