Schneider 140CFC03200 CableFast Clamp Kit
May 16, 2026

Schneider 140CFC03200 CableFast Clamp Kit

Modicon Quantum CableFast Terminal Block General Information Manufacturer: Schneider Electric Model: 140CFC03200 Product Type: 32 Points Fused Digital Output Terminal Block Applicable System: Modicon Quantum 140 Series PLC

Description

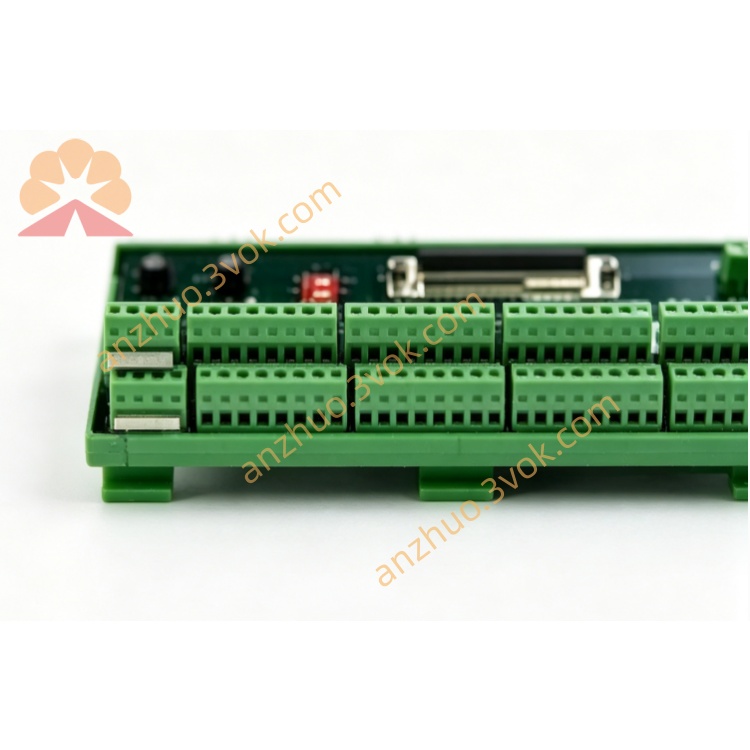

140CFC03200（3 - 副本.jpg

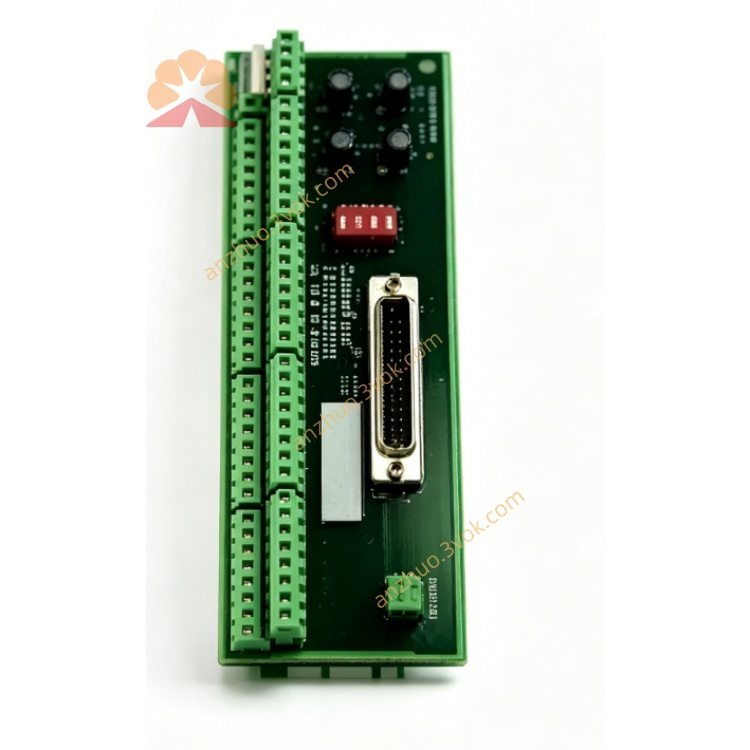

140CFC03200（2 - 副本.jpg

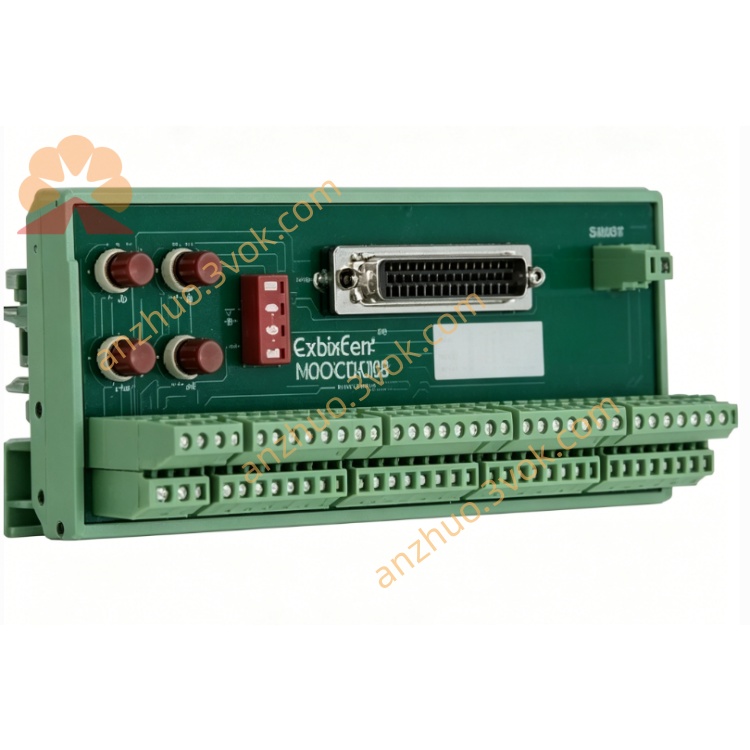

140CFC03200 - 副本.jpg

140CFC03200

Modicon Quantum CableFast Terminal Block

General Information

Manufacturer: Schneider Electric
Model: 140CFC03200
Product Type: 32 Points Fused Digital Output Terminal Block
Applicable System: Modicon Quantum 140 Series PLC

Product Description

140CFC03200 is a DIN rail mounted CableFast wiring terminal block for digital output modules. It adopts grouped wiring design, equipped with built-in fuse protection. It connects Quantum I/O modules through D-Sub 50 cable, and realizes convenient field wiring of 32-channel digital output signals, effectively simplifying cabinet wiring construction and daily maintenance work.

Main Technical Specifications

  1. Total Output Points: 32 points

  2. Group Distribution: 4 groups, 8 points per group

  3. Connection Interface: One D-Sub 50 pin connector

  4. Field Connection: Captive screw terminal

  5. Built-in Fuse: Overcurrent protection for each group

  6. Installation Method: Standard DIN rail mounting

  7. Operating Temperature: 0℃ ~ +60℃

  8. Storage Temperature: -40℃ ~ +85℃

  9. Protection Grade: IP20

  10. Wiring Type: Two-wire wiring for each output channel

Core Features

  1. Standard CableFast quick wiring structure, save wiring time

  2. Independent group fuse design, effectively protect output circuit and load equipment

  3. Anti-loose screw terminals, stable connection for long-term vibration environment

  4. Compact structure, save installation space in control cabinet

  5. Clear terminal marking, easy for circuit inspection and fault troubleshooting

  6. Good electromagnetic compatibility, stable signal output

Application Scope

Mainly matched with Modicon Quantum series digital output modules, widely used in industrial automation production line, water treatment, electric power, chemical industry and other automatic control occasions to drive on-site solenoid valves, relays, indicator lights and other execution components.

Compatibility

Compatible with most Modicon Quantum 140 series digital output modules via dedicated connecting cables, not suitable for analog modules and special temperature acquisition modules.
