Schneider 140CFE03200 CableFast End Cover

Home / Product/ Schneider Modicon
Schneider 140CFE03200 CableFast End Cover
May 16, 2026

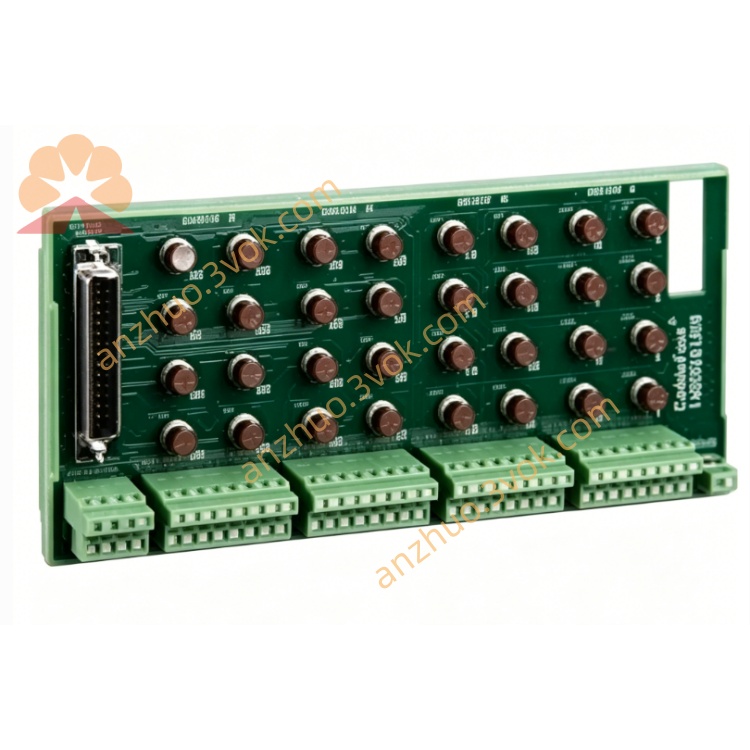

Schneider 140CFE03200 CableFast End Cover

Modicon Quantum CableFast Terminal Block General Information Manufacturer: Schneider Electric Model: 140CFE03200 Product Type: 32 Points Fused Digital Output Terminal Block Applicable System: Modicon Quantum 140 Series PLC

Description



140CFE03200

Modicon Quantum CableFast Terminal Block

General Information

Manufacturer: Schneider Electric
Model: 140CFE03200
Product Type: 32 Points Fused Digital Output Terminal Block
Applicable System: Modicon Quantum 140 Series PLC

Product Description

140CFE03200 is a DIN rail installed CableFast wiring terminal block specially designed for digital output signals. It adopts 4 groups layout with 8 points per group, equipped with built-in group fuse protection. It connects with Quantum I/O modules through standard D-Sub 50 cable, realizing quick wiring for 32-channel digital output signals, simplifying internal cabinet wiring and facilitating daily maintenance and circuit inspection.

Main Technical Specifications

  1. Channel Quantity: 32 digital output points

  2. Group Division: 4 groups, 8 channels per group

  3. Connection Port: 1 piece D-Sub 50 pin interface

  4. Field Terminal: Anti-loose screw terminal

  5. Protection Mode: Built-in group fuse overcurrent protection

  6. Installation Method: Standard 35mm DIN rail mounting

  7. Working Temperature: 0℃ ~ +60℃

  8. Storage Temperature: -40℃ ~ +85℃

  9. Protection Level: IP20

  10. Applicable Wire Specification: 0.2~4mm²

Core Features

  1. Fast CableFast connection design, greatly shorten wiring cycle

  2. Independent group fuse design can effectively protect field loads and PLC modules

  3. Firm screw terminal design, suitable for vibration industrial environment

  4. Reasonable terminal layout with clear marking, convenient wiring and troubleshooting

  5. Compact overall structure, save installation space inside control cabinet

  6. Good anti-interference performance, ensure stable output signal

Application Range

It is widely matched with all kinds of Quantum digital output modules, used in industrial automation, water treatment, electric power, chemical industry and other fields to control on-site actuators such as solenoid valves, relays, indicator lights and contactors.

Compatibility

Compatible with Modicon Quantum 140 series digital output modules via special connecting cables. It is not applicable to analog modules, temperature modules and other special function modules.
