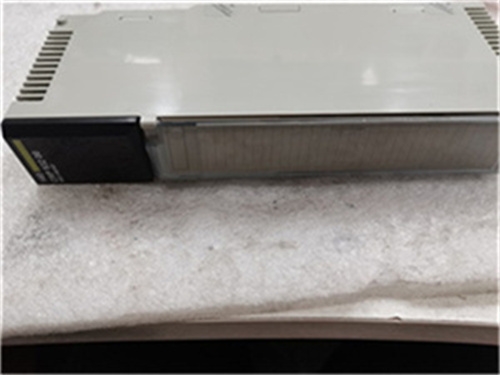

140CRP93200

Modicon Quantum S908 RIO Head‑End Adapter (Dual Coax, Redundant)

2 × 75Ω Coaxial Ports, Non‑Coated, 2‑Slot

English Datasheet / Instruction Manual (Full Text)

1. General Description

• Manufacturer: Schneider Electric

• Series: Modicon Quantum (140 Series)

• Module Type: S908 RIO Head‑End Adapter (Dual Coax / Redundant)

• Form Factor: 2 slots, hot‑swap

• Coating: Non‑coated (standard)

• Weight: ~0.5 kg

• Application: High‑availability process control, redundant RIO networks, plant‑wide distributed I/O

2. Electrical Specifications

• Backplane Voltage: 24 VDC (20 … 30 VDC)

• Backplane Current: 750 mA (dual channel)

• Power Dissipation: 3 W

• Isolation: 500 VDC (coax center to ground)

• Fuse Recommendation: 1 A slow‑blow

3. Communication Interface (S908 RIO, Redundant)

• Protocol: S908 RIO (Quantum proprietary)

• Media: 75 Ω coaxial cable (RG‑6/U)

• Data Rate: 1.544 Mbps (T1)

• Topology: Dual cable redundant, multidrop, up to 31 drops

• I/O per Drop: 64 In / 64 Out words max

• Distance: Up to 3,000 m (per channel, depending on cable & drops)

• Connectors: 2 × BNC female (redundant A/B)

• Termination: 75 Ω at both ends of both cables

• Redundancy: Automatic switchover (A ↔ B) on cable/fault

4. Environmental Specifications

• Operating Temperature: 0 °C … +60 °C

• Storage Temperature: −40 °C … +85 °C

• Relative Humidity: 5% … 95% non‑condensing

• Altitude: ≤ 2,000 m

• Shock/Vibration: Industrial standard

• ESD: 4 kV contact / 8 kV air

• EMI: 10 V/m (80–2000 MHz)

• Protection Class: IP20

5. Physical & Mechanical

• Dimensions (W × H × D): 114 × 122 × 52 mm (2 slots)

• Mounting: Any 2 consecutive slots, hot‑swap

• LED Indicators (Front):

  • PWR (Green) – Power OK

  • RUN (Green) – Module operational

  • COM A / COM B (Green Blink) – RIO network activity on each channel

  • ERR (Red) – Comm fault / config error / duplicate drop address

6. Wiring & Pinout (Dual BNC)

• Channel A / Channel B (both identical):

  • Center: Data (RIO signal)

  • Shield: Ground (PE)

• Termination: 75 Ω at head (CRP93200) and last drop (CRA93200) on both A and B cables

• Shield grounding: Ground at one end only per cable to avoid ground loops

7. Software Configuration

• Unity Pro (recommended)

• Concept v2.2+

• Modsoft v2.32+

1. Add 140CRP93200 (2 slots) to I/O configuration.

2. Enable S908 RIO master + redundant mode.

3. Set drop addresses: 1 … 31

4. Map remote I/O (%I, %Q, %MW) to Quantum memory.

5. Download configuration to CPU.

8. Troubleshooting

• PWR OFF: Check 24 VDC backplane; reseat module.

• RUN OFF: Missing/invalid config; re‑download project.

• ERR ON: Wrong termination, cable short, duplicate drop address, or A/B mismatch.

• COM A/B no blink: No drops on that channel; check cabling/termination.

• Redundancy switch: Normal if one channel fails and the other takes over automatically.

9. Certifications

• CE (EN 55011, EN 61131‑2)

• UL 508

• CSA C22.2 No. 142

• RoHS compliant

• Class I Div 2 (hazardous locations)

10. Ordering Information

• 140CRP93200: S908 RIO Head, dual coax, non‑coated (redundant standard)

• 140CRP93200C: S908 RIO Head, dual coax, conformal coated (harsh env)

• Related Redundant Drops:

  • 140CRA93200: RIO Drop, dual coax, non‑coated

  • 140CRA93200C: RIO Drop, dual coax, coated
