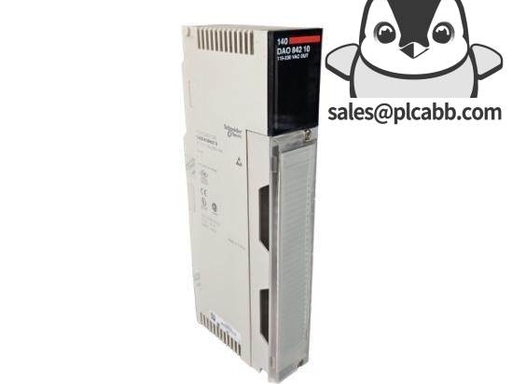

140DAO84210C

Modicon Quantum AC Discrete Output Module

16 Outputs, 85–253 V AC, 47–63 Hz, Triac, Conformal Coated, Fused, With Diagnostic

English Specification Manual (Full Text)

1. General Description

• Outputs: 4 groups × 4 channels (4×4 grouping, group‑to‑group isolation)

• Manufacturer: Schneider Electric

• Series: Modicon Quantum (140 Series)

• Module Type: AC Discrete Output Module, Triac, 16‑Ch (4×4), Conformal Coated, Fused, With Diagnostic

• Total Outputs: 16 points (4 groups × 4 ch)

• Output Grouping: 4 groups × 4 ch (group isolated, common per group)

• Form Factor: 1 slot, hot‑swappable

• Coating: Conformal coated (Humiseal 1A33, IPC‑CC‑830 qualified)

• Weight: ~0.45 kg

• Key Feature: 16×Triac Out, 85–253V AC, 47–63Hz, 4×4 Group Isolation, Conformal Coated, Fused, With Diagnostic

• Application: 115/230V AC loads, motors, heaters, lighting, offshore, chemical, pulp & paper, high humidity, salt mist, corrosive atmosphere

2. Electrical Specifications

Outputs (16 × Triac, 85–253 V AC, 4×4 Groups)

• Output Type: Solid‑state (triac), zero‑crossing

• Operating Voltage: 85–253 V AC

• Nominal Voltage: 115 / 230 V AC

• Frequency: 47–63 Hz

• Load Current (per channel):

  • 85–132 V AC: 4 A RMS max

  • 170–253 V AC: 3 A RMS max

• Total Module Current: 16 A RMS max (continuous)

• Surge Current (per channel):

  • 10 A (3 cycles)

• Off‑State Leakage Current:

  • 115 V AC: < 2 mA RMS

  • 230 V AC: < 2.5 mA RMS

• On‑State Voltage Drop: ≤ 1.5 V RMS

• dv/dt Rating: 400 V/μs

• Isolation: 2500 Vrms, 1 min (group‑to‑group & group‑to‑bus)

• Absolute Maximum Output:

  • 300 Vrms (10 s AC)

  • 400 Vrms (1 cycle AC)

Backplane & Power

• Backplane Current: 350 mA

• Power Dissipation: ~8.0 W max (formula: 1.85 + 1.1 × total load current)

• Internal Power: Powered by Quantum backplane

Fusing & Diagnostics

• Fused: 5 A per group (on‑board, replaceable)

• Diagnostics: Blown fuse / loss of field power

• Fault LED: Red “F” (fuse/field power fault)

3. I/O & LED Indicators (Front)

• OUT0 … OUT15 (Green LEDs) – Individual output status (ON = lit)

• ACTIVE (Green LED) – Bus communication OK

• F (Red LED) – Fault (blown fuse / field power loss)

4. Environmental Specifications (Coating Enhanced)

• Operating Temperature: 0 °C … +60 °C

• Storage Temperature: −40 °C … +85 °C

• Relative Humidity: 5% … 95% non‑condensing

• Altitude: ≤ 2,000 m (standard); up to 5,000 m derated

• ESD: 4 kV contact / 8 kV air

• EMI: 10 V/m (80–2000 MHz)

• Protection Class: IP20

• Coating Protection: Resists moisture, dust, salt mist, and common industrial contaminants

5. Physical & Mechanical

• Dimensions (W × H × D): 35 × 122 × 52 mm (1 slot)

• Mounting: Any single slot, hot‑swap compatible

• Wiring: Screw terminals (field side)

• Output Grouping: 4 groups × 4 ch (common per group)

• Field Wire Size: 0.5 … 2.5 mm² (20–14 AWG)

6. Wiring & Connection

Outputs

• Common: Common per group (4 groups)

• Output: Switch 85–253 V AC between common and output terminal (per channel)

• Fuse: 5 A / group (internal, replaceable)

• Shielding: Recommended for long cables; ground at one end only

• Polarity: AC, no polarity sensitivity

7. Software Configuration

• Unity Pro (recommended)

• Concept v2.2+

• ProWORX 32

1. Add 140DAO84210C (1 slot) to I/O map

2. Default output address: %Q0 … %Q15 (1 word)

3. Enable fault diagnostics (fuse/field power)

4. Download to CPU

8. Troubleshooting

• All OUT LEDs OFF: Check backplane, module seating, or ACTIVE LED

• ACTIVE OFF: Module not recognized; reseat or check backplane

• F (Red) ON: Blown group fuse or loss of field power

• OUT LED ON but load not energized: Check field wiring, load, or group fuse

• Erratic Operation: Poor grounding, noise, or overvoltage

• Coating Note: Do not apply additional conformal coating; factory coating is sufficient

9. Certifications

• CE (EN 55011, EN 61131‑2)

• UL 508 / CSA C22.2 No. 142

• CUL, FM Class I Div 2

• RoHS compliant

• Coating: IPC‑CC‑830 qualified

10. Ordering Information

• 140DAO84210: Standard non‑coated, 16×Triac 85–253V AC, 4×4 Group, Fused / With Diagnostic (general environment)

• 140DAO84210C: Conformal coated, 16×Triac 85–253V AC, 4×4 Group, Fused / With Diagnostic (harsh environment)
